1.2UF CBB61 Electric Fan Capacitor

The 1.2UF CBB61 Electric Fan Capacitor is mainly used in electric fans, mahjong machines, bread machines, paper shredders, range hoods, etc.

Model:NDPJ-CBB61-1

Send Inquiry

Product Description

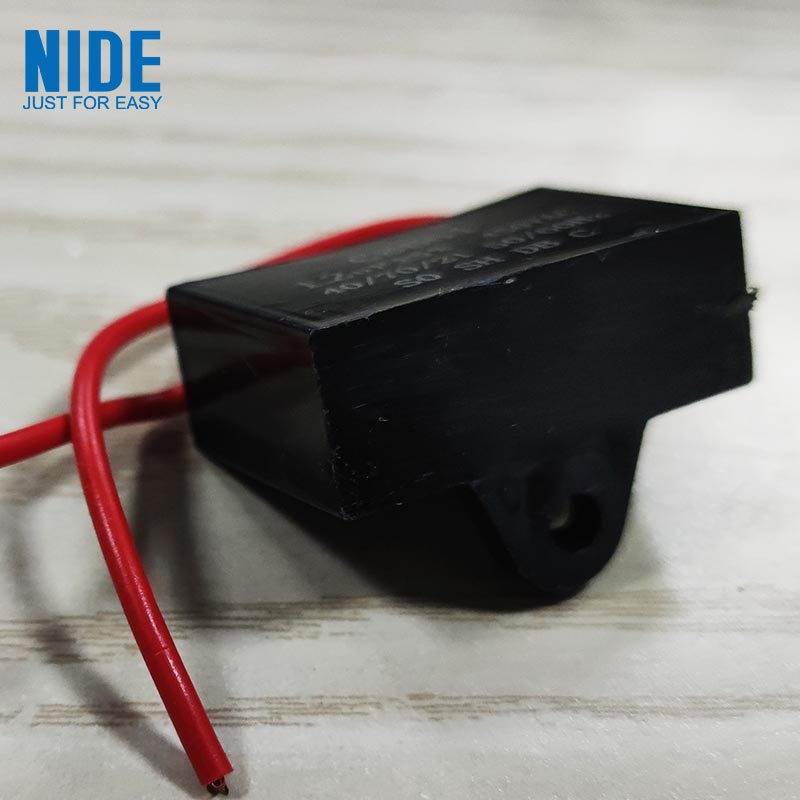

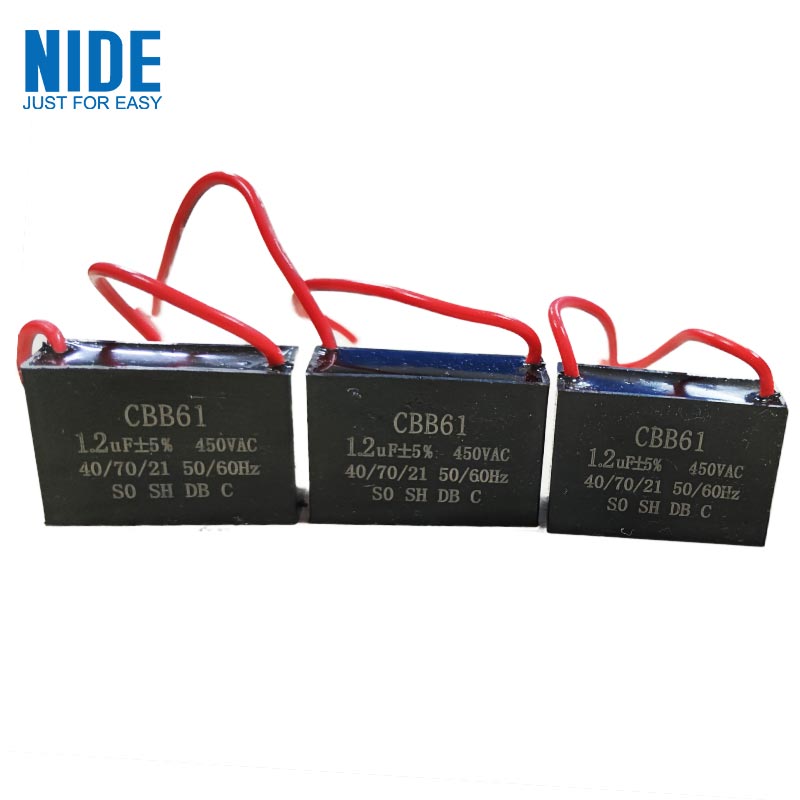

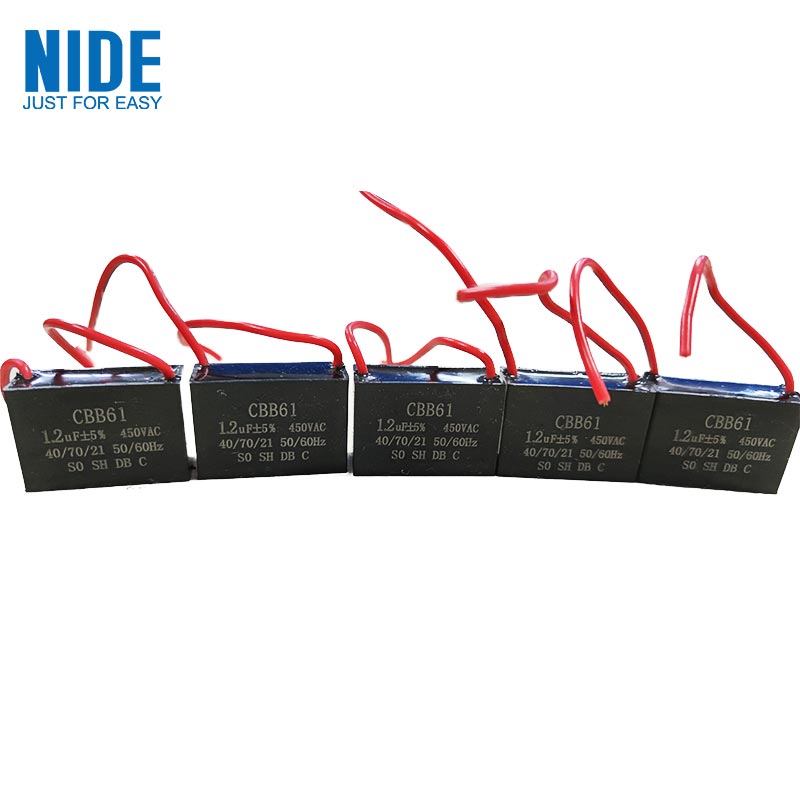

1.2UF CBB61 Electric Fan Capacitor

CBB61 capacitor is a kind of AC motor running & starting capacitor. Its shape is generally rectangular. It is characterized by large capacity, low loss, strong moisture resistance, good reliability and excellent electrical performance. The ambient temperature suitable for use is -40℃~+85℃. Our company can develop, design and produce products that meet various special needs according to the different needs of customers.

Capacitor Application :

CBB61 capacitors are mainly used in electric fans, mahjong machines, bread machines, paper shredders, range hoods, etc.

Capacitor Feature:

1. Encapsulated in plastic shell, with good appearance consistency.

2. Small loss at high frequency, suitable for larger current.

3. High insulation resistance, good self-healing and long life.

Capacitor Structure:

1. The capacitor core is wound by metallized organic film.

2. Plastic shell, flame retardant epoxy resin potting, single capacitor core or multi-capacitor core can be installed in one shell.

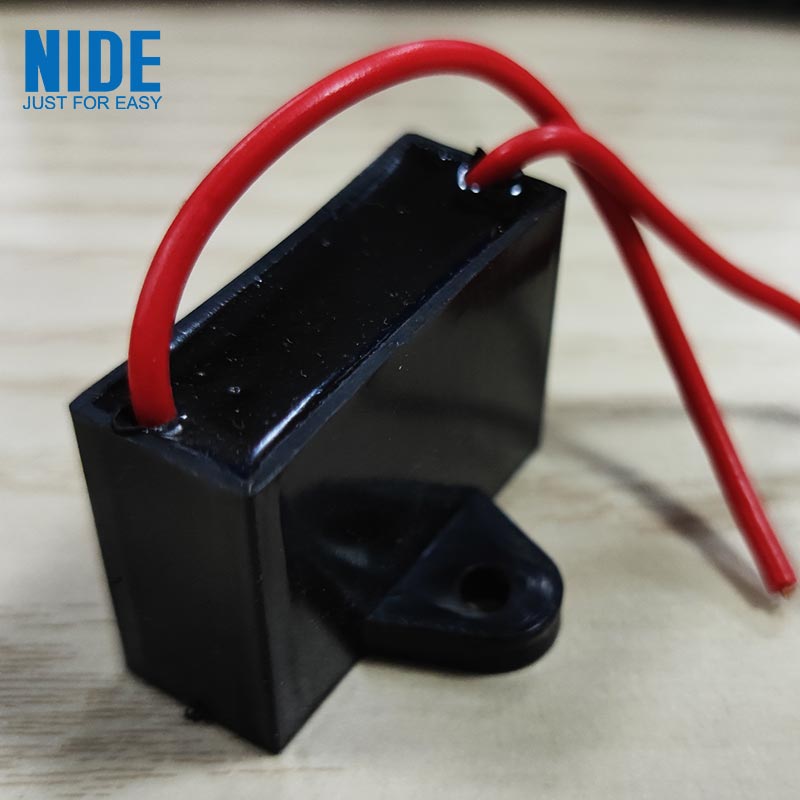

3. The installation components include plastic ears and iron ears.

4. The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc.

Capacitor Parameter

Product Name:	AC Motor Capacitor
Model:	CBB61
Material:	Metal Plastic;
Voltage:	250VAC、370VAC、440VAC、450VAC 50/60Hz
Max.TEMP:	70°C
Size:	38X27X16MM
Reference standards:	GB/T 3667.1 ( IEC60252-1 )
Climatic category：	40/ 70/21、40/85/21
Class of operation	Class B (10000h) Class C (3000h)
Class of safety protection	S0 /S3
Capacitance range	1~35μ F
Capacitance tolerance	土5%、土10%、土15%
Dissipation factor	20x10^(-4) ( 100Hz, 20°C )
Test voltage terminalto terminal UTT	2Un for 2 seconds
Test voltage terminal to caseUTC	(2Un+ 1000)VAC or 2000VAC- 50Hz for 60 seconds
RC	≥3000s (100Hz, 20°C，1min)
