AC motor commutator 24P armature commutator 30.3*12*23.5mm
AC motor commutator 24P armature commutator 30.3*12*23.5mm
NIDE produces different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.China AC motor commutator 24P armature commutator 30.3*12*23.5mm
Model:NDPJ-HXQ-549
Send Inquiry
Product Description
AC motor commutator 24P armature commutator 30.3*12*23.5mm
1. AC Motor Commutator Introduction
1. Resin Surface no bubble, crack,etc.
2.Dielectric strength:bar-bar 500V/AC, 1S,bar-shaft 3000VAC,60S,no crack or flash
3.Insulation resistance:room temperature,500V/DC Mega meter, insulation resistance>
100MΩ
4.Unmarked tolerance accord with GB/T1804-m
5. Electric pick gun commutator resistance: 500V, more than 50MΩ
6. Spin test: do spin test for the commutator under 140 centigrade, the speed is 5000RPM, the test continues for 3min. After testing, the deviation of outer diameter is less than 0.015, the deviation between bar and bar is less than 0.005.
7. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.
2.AC Motor Commutator Parameter (Specification)
| Product name: | Electric pick gun AC motor commutator |
| Materials： | 0.03% or 0.08% sliver copper or customized |
| Dimension ： | 30.3*12*23.5mm or Customized |
| Commutator type： | Hook type/Raiser type |
| Application : | Automotive industry, power tools, household appliances, and other motors |
| Package: | Suitable for land and sea transportation |
| Production capacity: | 1000000pcs/month |
3.AC Motor Commutator Feature And Application
The Hook Commutator is suitable for Universal motor, Industrial motor, Household Appliances, Car, Power Tools, Electric Bikes& Motorcycles.

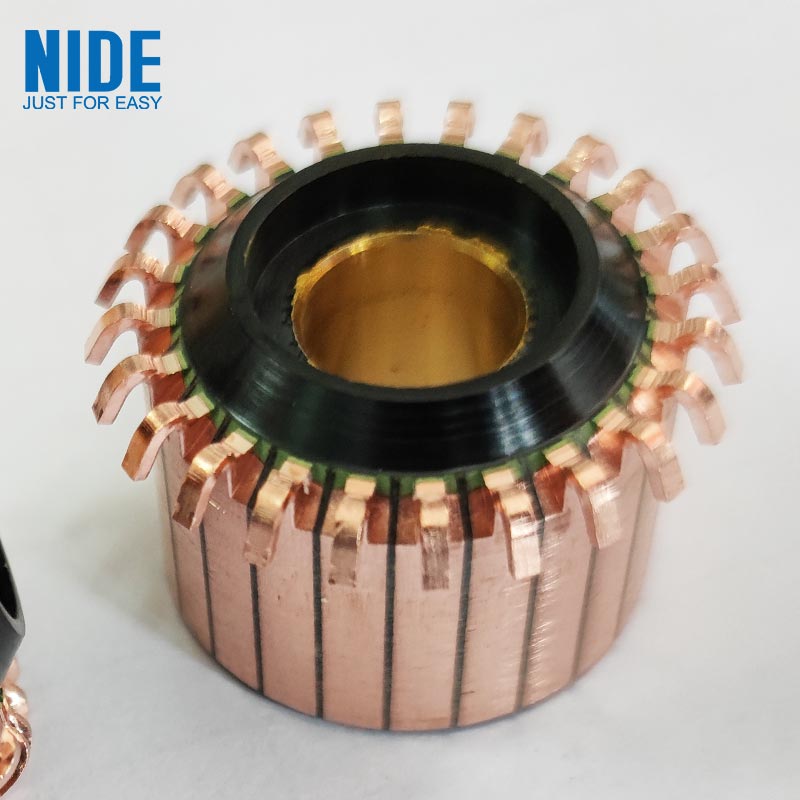

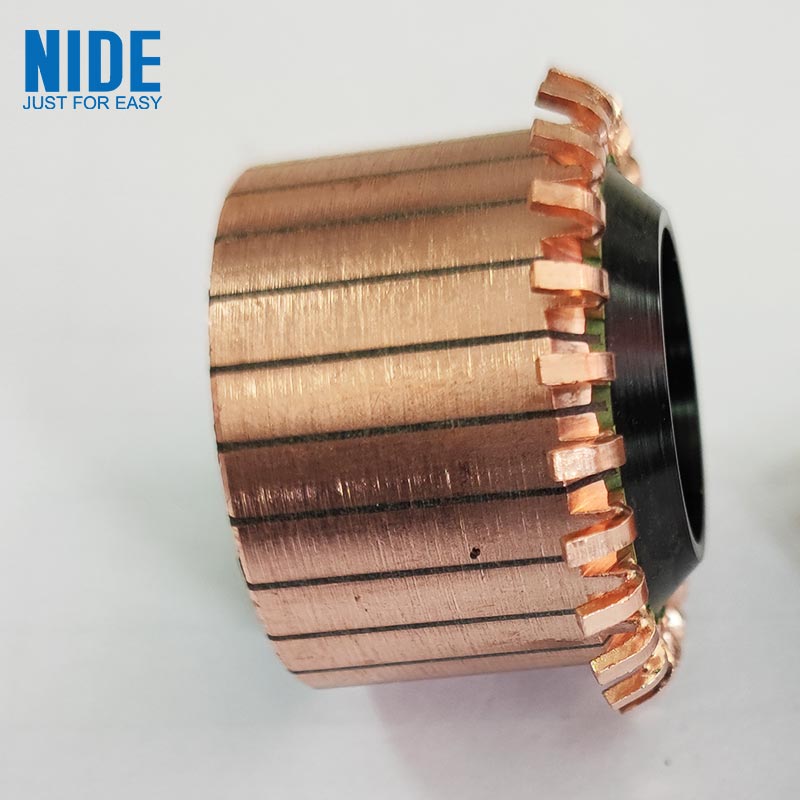

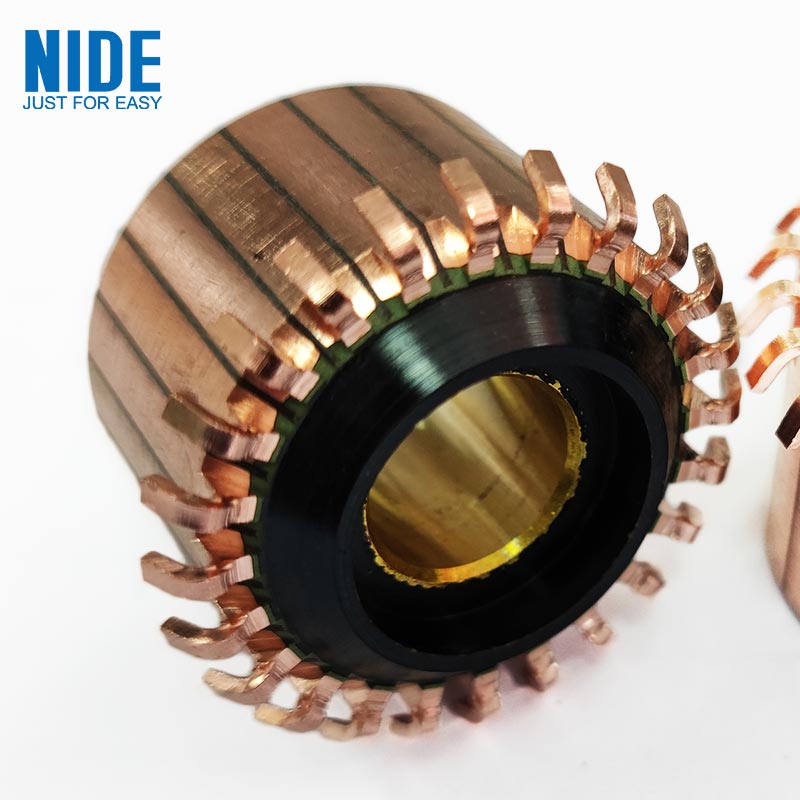

4.AC Motor Commutator Picture
