Commutator For Electric Planer

We are professional in manufacturing commutator for Electric Planer. NIDE have been in this field for many years, and have produced hundreds kinds of commutator. Our commutators mainly have hook type, groove type, flat type and other specifications.

Send Inquiry

Product Description

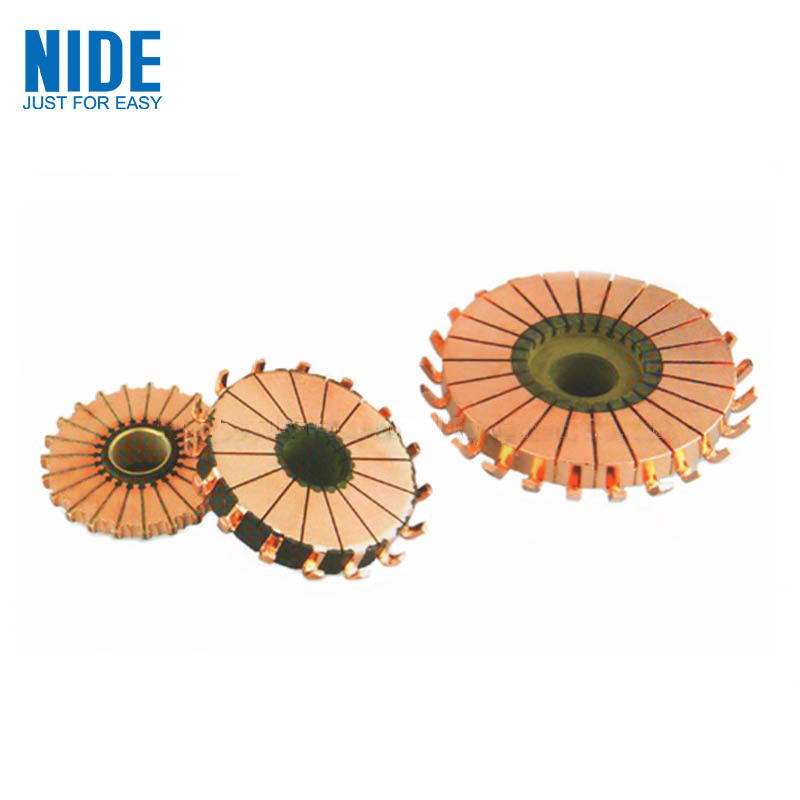

Commutator for Electric Planer

1.Product Introduction

The Commutator is mainly used for electric planer. It is made of imported raw materials and its performance has reached the international advanced level.

1. Sliver copper with high intension and wear resistance

2. Long duration time

3. Wide range of commutator

4. Wide application of commutator

5. Good quality

6. Produce commutator as per customer’s drawing.

2.Product Parameter (Specification)

Part No.	O.D (D)	I.D (d)	Total O D (D1)	Bar No(N)	Bar length (L1)	Total length (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B	63	20	73	24	16	26.5
JZQE-RS12-148C	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150	44	12.08		23	10	12.5
JZQE-RS31-150B	44	12.35		23	10	12.5
JZQE-RS31-150C	44	12.06		23	10	12.5
JZQE-RS31-150D	44.2	12.08		23	10	12.5
JZQE-RS31-150E	44	12		23	10	12.5
JZQE-RS12-151	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B	47.6	13.2	57	16	14	22
JZQE-RS12-151C	47.6	13	57	16	14	24.5
JZQE-RS12-151D	47.6	13	57	16	14	22
JZQE-RS12-151E	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E	20.5	5	25	8	5.7	8.5
JZQE-RS12-480	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B	44.2	12.35		23	10	13
JZQE-RS31-525C	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17

3.Product Feature And Application

TheElectric Planer Commutator is widely used in power tools, household appliances, automobiles, motorcycle motors and other fields; collector rings, carbon brush holders, wiring boards have various specifications and models. It is used in automobile generators, gasoline generators and other fields.

4.Product Details

Commutator for Electric Planer

1. Voltage test: bar to bar at 500V, 1s, bar to bore at 1500V, 1 min, without breakdown or flashing.

2. Spin test: do spin test for the commutator under 140 centigrade, 5000RPM, 3min. After testing, the max deviation of outer diameter is 0.015, that of bar and bar is 0.005.

3. Insulation resistance: 500V, more than 50MΩ

4. Free from bubble, cracks, or burr in the surface.
