Commutator For Jig Saw
The Commutator is used for Jig Saw motor. NIDE is a professional motor commutator manufacturer and supplier in China. Our commutator manufacturing plant covers an area of more than 5,000 acres. We have complete motor commutator export experience and produce different types of commutators, including Hook type, riser type, shell type, plane type,You can rest assured to buy Commutator For Jig Saw from our factory and we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description

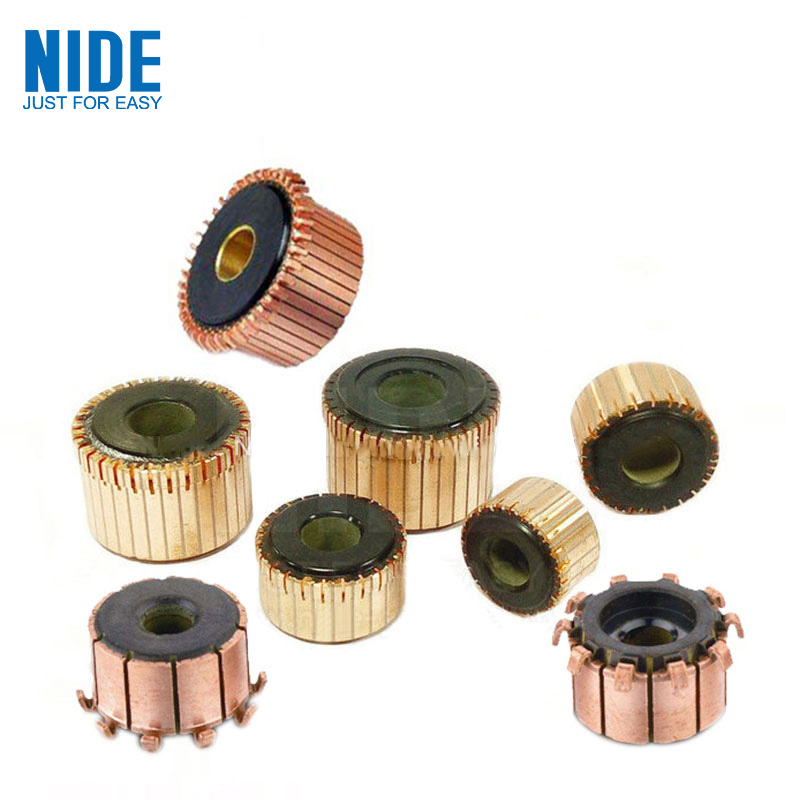

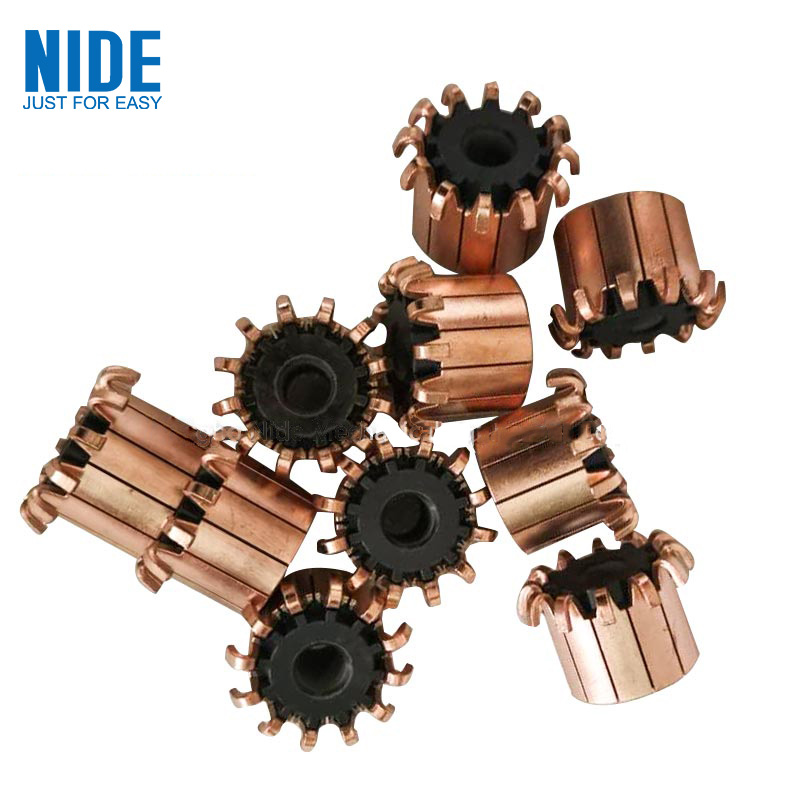

Commutator for Jig Saw
1.Product Introduction
This commutator is specially designed for jig saw motors, using high-quality materials, with good performance, low noise, and long service life.
2.Product Parameter (Specification)
|
Materials |
0.03% or 0.08% sliver copper or customized |
|
Dimension |
Customized |
|
Commutator type |
Hook type/Raiser type |
|
Application |
apply to automotive industry, power tools, household appliances, and other motors |
|
Package |
Suitable for land and sea transportation |
|
Production capacity |
1000000pcs/month |
|
Model No. |
OD |
ID(mm) |
Total height |
Segment Length |
Hook/Riser dia. |
Bar No. |
|
S-02001 |
37.5 |
φ13 |
24 |
20.5 |
38.5 |
32 |
|
S-03002 |
15.75 |
φ13 |
11.25 |
9.5 |
16 |
24 |
|
S-03003 |
24 |
φ9 |
17 |
14 |
25 |
24 |
|
S-03003B |
24.5 |
φ10 |
17.5 |
14 |
25.5 |
24 |
|
S-03003C |
24.5 |
φ10 |
17.5 |
14 |
25.5 |
24 |
|
S-02004 |
24 |
φ9 |
15 |
13 |
24.5 |
24 |
|
S-03004A |
23.2 |
φ9 |
15 |
13 |
24 |
24 |
|
S-03005 |
24 |
φ9 |
17 |
14 |
25 |
24 |
|
S-03005A |
24 |
φ9 |
17 |
14 |
25 |
24 |
|
S-03006 |
37.5 |
φ13 |
26 |
23 |
38.5 |
32 |
|
S-03007 |
25.5 |
φ10 |
17 |
14 |
26.5 |
24 |
|
S-03007B |
25.5 |
φ10 |
17 |
14 |
26.5 |
24 |
|
S-03008 |
23.5 |
φ9 |
14 |
12 |
24 |
24 |
|
S-03009 |
24 |
φ9 |
16.6 |
14 |
29 |
24 |
|
DZQD-RZ32-010 |
28.5 |
φ12 |
17.5 |
16 |
34.3 |
24 |
|
S-03011 |
23.5 |
φ9 |
17.5 |
14 |
28 |
24 |
|
DZQD-RZ32-012 |
23.5 |
φ10 |
18 |
16.4 |
28.5 |
24 |
|
S-03013 |
23 |
φ8 |
16 |
14 |
23.5 |
24 |
|
S-03014 |
28.5 |
φ11 |
20 |
17 |
29.5 |
24 |
|
S-03015 |
22.5 |
φ9 |
17.5 |
17.2 |
30 |
10 |
|
S-03016 |
28 |
φ14 |
20 |
19.2 |
36.8 |
12 |
|
S-03016A |
28 |
φ14.2 |
20 |
19.2 |
36.8 |
12 |
|
S-03017 |
28.5 |
φ9 |
17.5 |
15 |
29.5 |
24 |
|
S-03018 |
34.3 |
φ13 |
22 |
20.5 |
41.5 |
24 |
|
S-03019 |
24.5 |
φ10 |
17.5 |
14 |
25.5 |
24 |
|
S-03019A |
24.5 |
φ10 |
17.5 |
14 |
25.5 |
24 |
|
S-03020 |
28.5 |
φ11 |
17 |
14 |
29.5 |
24 |
|
S-03021 |
20.5 |
φ10 |
18 |
13.5 |
30.5 |
12 |
|
QZQC-RZ12-022 |
20.5 |
φ10 |
17.8 |
13.5 |
26 |
12 |
|
S-03024 |
40.4 |
φ13 |
24 |
20 |
42 |
50 |
|
S-03025 |
23.2 |
φ8 |
17.5 |
17 |
30 |
12 |
|
QZQC-RZ32-026 |
20.2 |
φ8 |
14.6 |
14.1 |
25 |
16 |
|
QZQC-RZ32-026A |
20.2 |
φ8 |
14.6 |
14.1 |
25.5 |
16 |
|
QZQC-RZ12-027 |
18.9 |
φ8 |
14.5 |
12.8 |
24 |
12 |
|
S-03028 |
15.5 |
φ7 |
11.4 |
11.7 |
20 |
9 |
|
S-03030 |
22.5 |
φ9.2 |
18 |
17.7 |
30.6 |
10 |
|
S-03031 |
22.5 |
φ12 |
21 |
20.5 |
30.5 |
10 |
|
S-03032 |
28.5 |
φ12 |
17.5 |
14.5 |
29.5 |
24 |
|
S-03033 |
30 |
φ10 |
20 |
17 |
35.5 |
24 |
|
S-03033A |
30 |
φ11 |
21 |
18 |
36 |
24 |
|
S-03033B |
30 |
φ11 |
21 |
18.5 |
36 |
24 |
|
S-03033C |
30 |
φ11 |
21 |
18.5 |
36 |
24 |
|
JZQC-RZ32-037 |
22 |
φ8 |
16 |
14.2 |
27 |
16 |
|
S-03038 |
35.4 |
φ14 |
42.5 |
38 |
48 |
23 |
|
S-03038A |
35.4 |
φ14 |
42.5 |
38 |
48 |
23 |
|
S-03044 |
22.5 |
φ10 |
17.5 |
17 |
28.5 |
10 |
|
S-03045 |
35.5 |
φ15.75 |
23.5 |
20 |
46 |
19 |
|
S-03046A |
37.5 |
φ14 |
42 |
38 |
49.5 |
23 |
|
S-03046B |
37.5 |
φ14 |
42 |
38 |
49.5 |
23 |
|
S-03047 |
45 |
φ15.5 |
50 |
44.4 |
62 |
21 |
|
S-03048 |
34 |
φ10.2 |
38.5 |
34.5 |
46.5 |
23 |
|
S-03050 |
15 |
φ5 |
16.5 |
15.5 |
20 |
12 |
3.Product Feature And Application
The Commutator is widely used in many industrial, such as Jig Saw, power tools, car industry, window lifts, electric drill etc.
4.Product Details
If our existing Commutator models are not suitable for you, we could also develop new tooling according to your drawing and samples.
