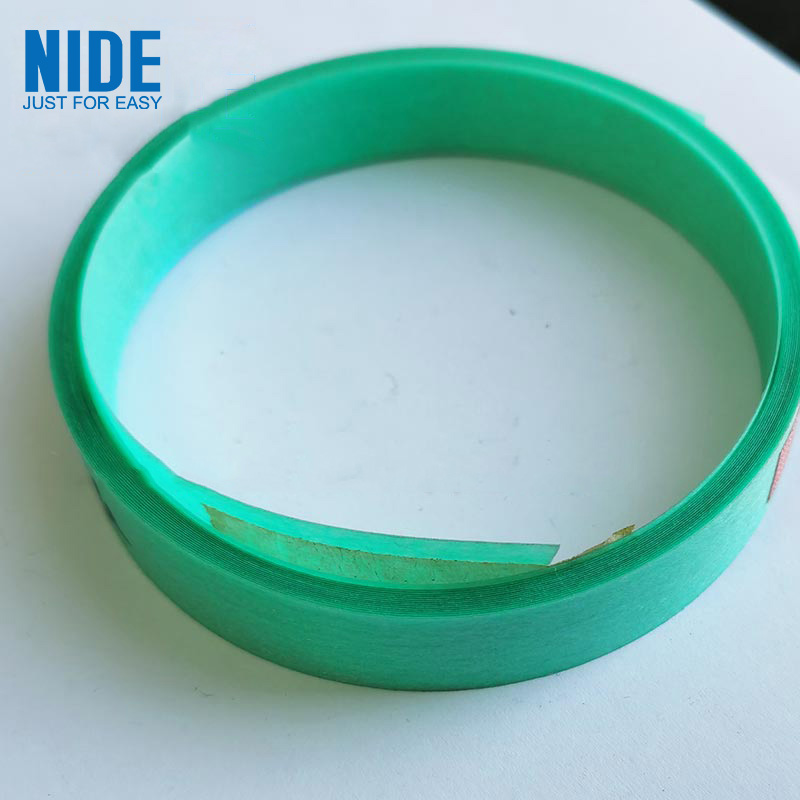

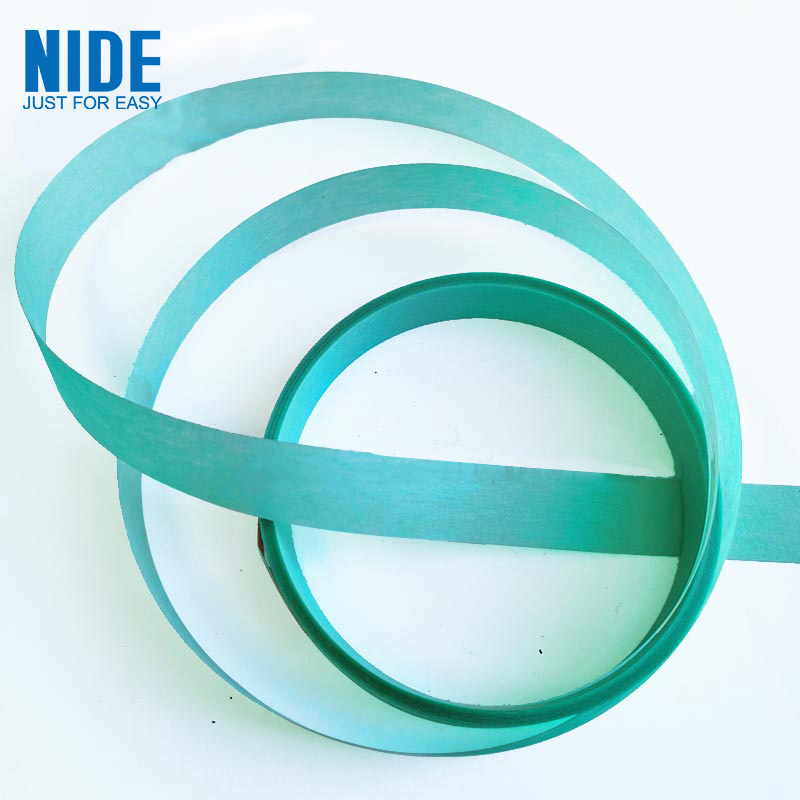

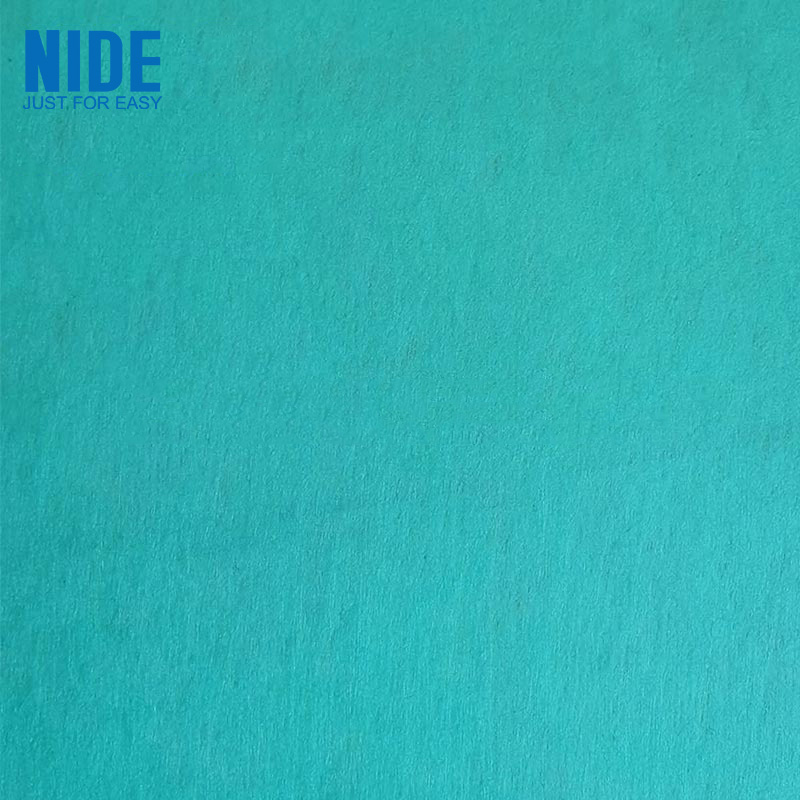

Composite Polyester Film PMP Insulation Paper

NIDE can customize various shapes of Composite Polyester Film PMP Insulation Paper according to customer needs, such as taping, slices, tube cores, etc.

Send Inquiry

Product Description

Composite Polyester Film PMP Insulation Paper

1.Product Introduction

The Composite Polyester Film PMP Insulation Paper has good dielectric properties, high heat resistance, tear strength, tensile strength and mechanical strength, and good impregnation performance. It can be bonded to the high-density polyester fiber non-woven fabric of the outer layer. Improve the mechanical strength of the film, maintain good flexibility and further improve the heat resistance and thermal stability of the product.

2.Product Parameter (Specification)

Name:	Polyester film polyester fiber composite material
Composition:	A composite material made of polyester film coated with F grade adhesive on both sides and polyester fiber paper on both sides.
Model:	6641 DMD-F level
Color:	green
Thickness	0.13-0.45 (mm)
Size	1000 (mm)
Dribbling	More than 10mm
Slicing	1000*900mm
Tubular	76mm
Features	High temperature resistance, good dielectric properties, high heat resistance and mechanical strength.
Heat resistance	155℃
Customized :	Yes
Packing:	carton, bag
Store	dry place

3.Product Feature And Application

The Composite Polyester Film PMP Insulation Paper is suitable for general type and humid tropical type electric tank insulation, turn-to-turn insulation and liner insulation for class F insulation, and can also be used as transformer coil insulation. Mainly suitable for the production and automated production of motors and electrical products.
