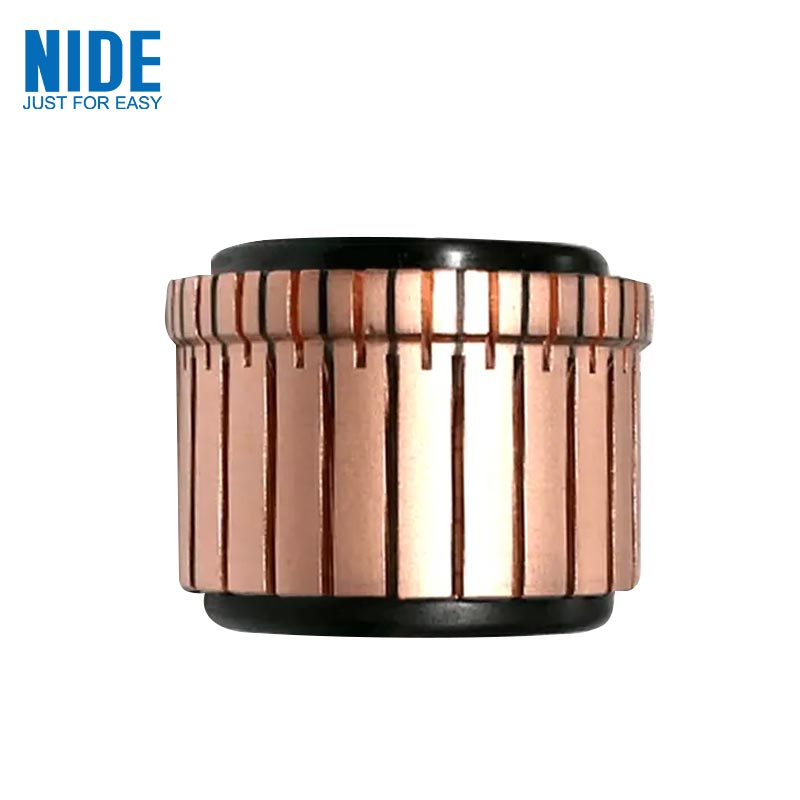

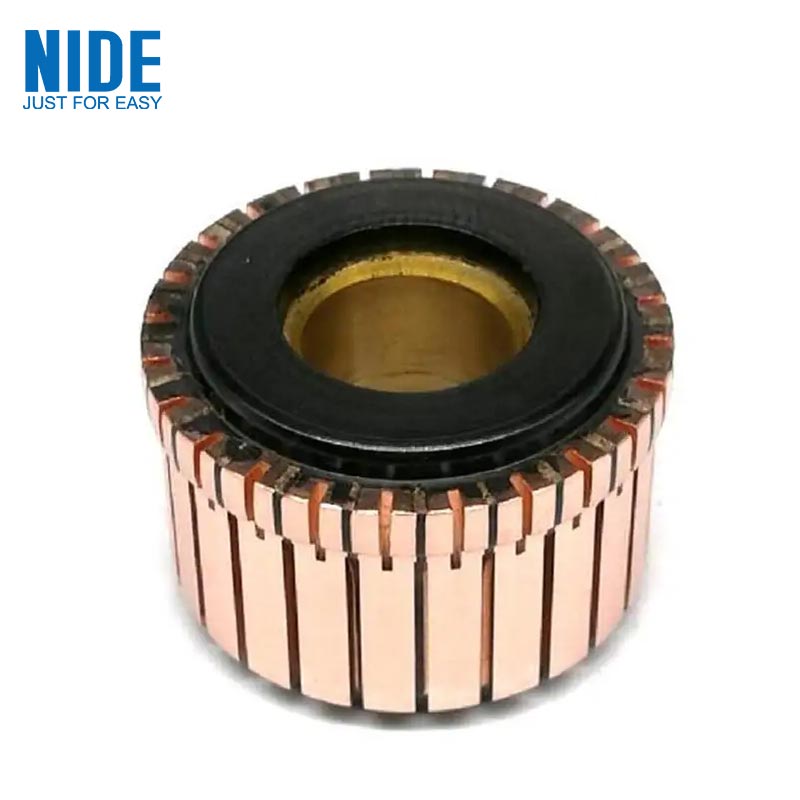

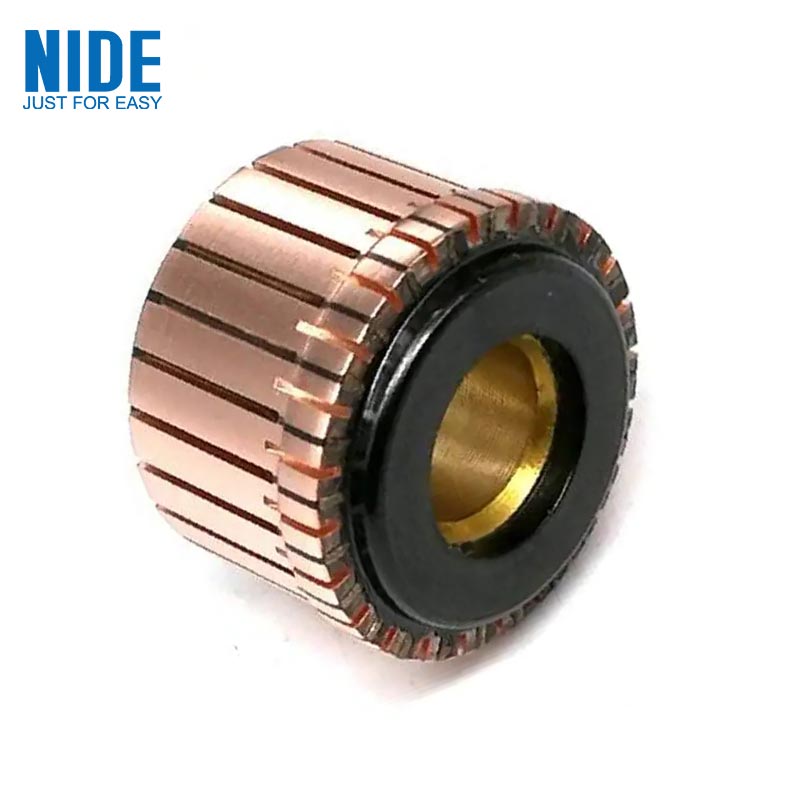

Custom automotive fan motor slot commutator For automobile

NIDE can provide more than 1,200 different motor commutations. We have been manufacturing commutators for more than ten years and can provide customers with competitive prices and high-quality commutators.Welcome to buyCustom automotive fan motor slot commutator For automobile from us. Every request from customers is being replied within 24 hours.

Model:NDPJ-HXQ-1071

Send Inquiry

Product Description

In automotive fan motors, the slot commutator is a relatively common commutator type.

The manufacture of slot-type commutators for automotive fan motors requires high-precision processing and assembly technology. In addition, the quality and stability of materials must be ensured during the manufacturing process to ensure the reliability and durability of the commutator.

Technical requirement of commutator:

1. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.

2. Spin test: do spin test for the commutator under 140 centigrade, the speed is 5000RPM, the test continues for 3min. After testing, the deviation of outer diameter is less than 0.015, the deviation between bar and bar is less than 0.005.

3. Insulation resistance: 500V, more than 50MΩ

Commutator For Automobile Parameter

Product name: Starter Self Armature Commutator

Material: Copper with 0.03% silver and bakelite

Dimensions: Customized

Application: Automobile starter commutator

Type: slot /Segment commutator

Temperature control range: 380 (℃)

Working current: 380 (A)

Working voltage: 220 (V)

Applicable motor power: 220, 380 (kw)
