High Quality Stator Insulation Paper for Electric Motor Winding

High Quality Stator Insulation Paper for Electric Motor Winding

1.Product Introduction

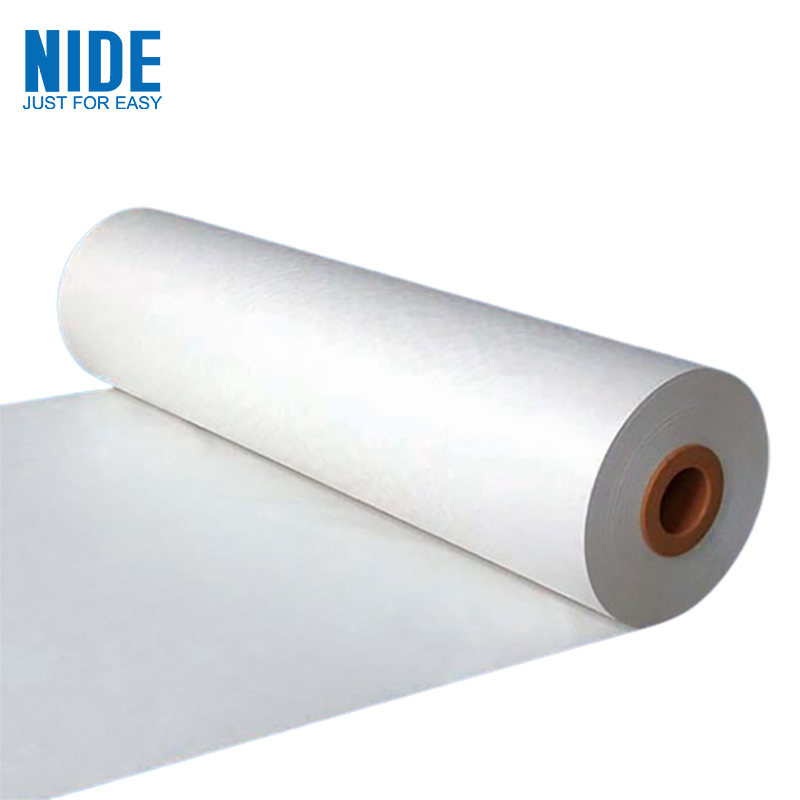

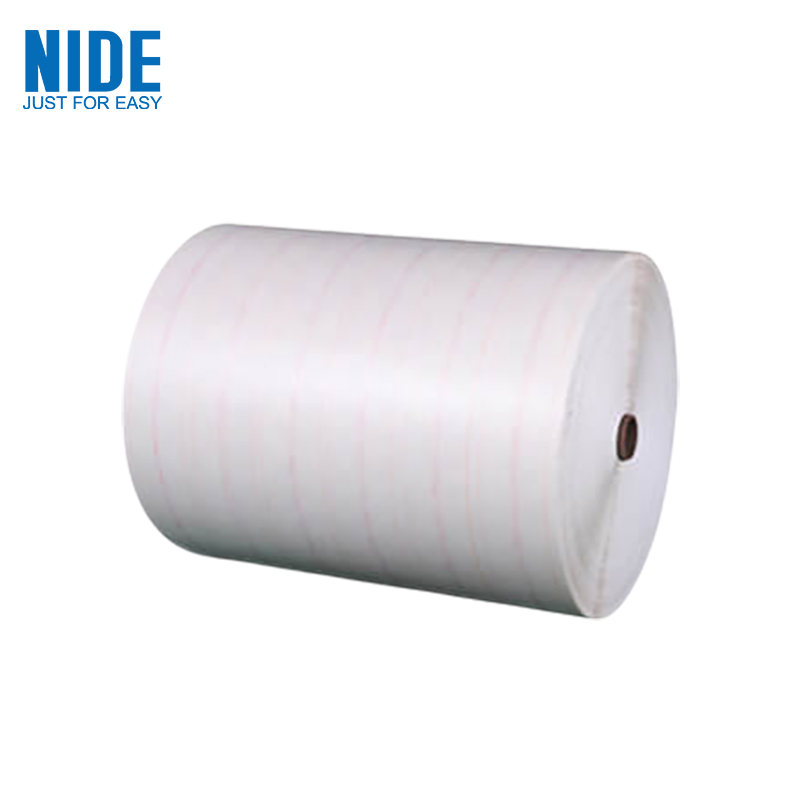

6630/B grade DMD insulating paper is a three-layer electrical soft composite insulating paper composed of two layers of high-density polyester fiber non-woven fabrics, and a layer of high-melting point 6020 electrical insulating polyester film in the middle.

2.Product Parameter (Specification)

3.Product Feature And Application

6630 (DMD) polyester film polyester fiber non-woven soft composite material heat resistance class B class F (DMD) is a three-layer soft composite insulation material, made of polyester non-woven fabric, polyester film, poly It is composed of ester non-woven fabric (DMD). The adhesive used is acid-free, heat-resistant, and has good mechanical and electrical properties. Polyester non-woven fabric has adsorption capacity and can absorb resin when impregnated. Used in low-voltage motors Inter-slot and inter-phase insulation, or used as inter-layer insulation in transformers, the material has high stiffness and is suitable for mechanical off-line processes.

4.Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.
