Juicer mixer switch motor commutator for home appliances

This commutator is suitable for Juicer mixer switch motors. NIDE is engaged in the design, development, and production of slot, hook, and planar commutators (collectors) for DC motors and universal motors. And can provide various types of motor commutators according to customer needs. We have a complete quality assurance system and an advanced enterprise management system.The following is an introduction to Juicer mixer switch motor commutator for home appliances, I hope to help you better understand it.

Model:NDPJ-HXQ-1003

Send Inquiry

Product Description

Juicer mixer switch motor commutator for home appliances

Commutator Introduction

The segmented commutator is suitable for Juicer mixer switch motor.

Each segment or bar on the commutator conveys current to a particular coil. To enhance efficiency, the contact surfaces are made from a conductive material, usually copper. The bars are also separated from each other using a non-conductive material such as mica. This helps prevent shorting.

Commutator Parameters
Product name Juicer mixer motor commutator / collector
Material Copper, glass fiber
Outer diameter 25.5
Inner hole 8
Total height 18
Number of pieces 28
Custom processing: Yes
Application: Household appliances motor component, blenders, juicers.

Commutator Working Principle
Commutator is found in the back of the motor's housing and forms part of the armature assembly. Usually round and segmented, its main function is to transfer current to the armature in the required sequence. That is made possible by the segments or copper bars on which the motor brushes slide.

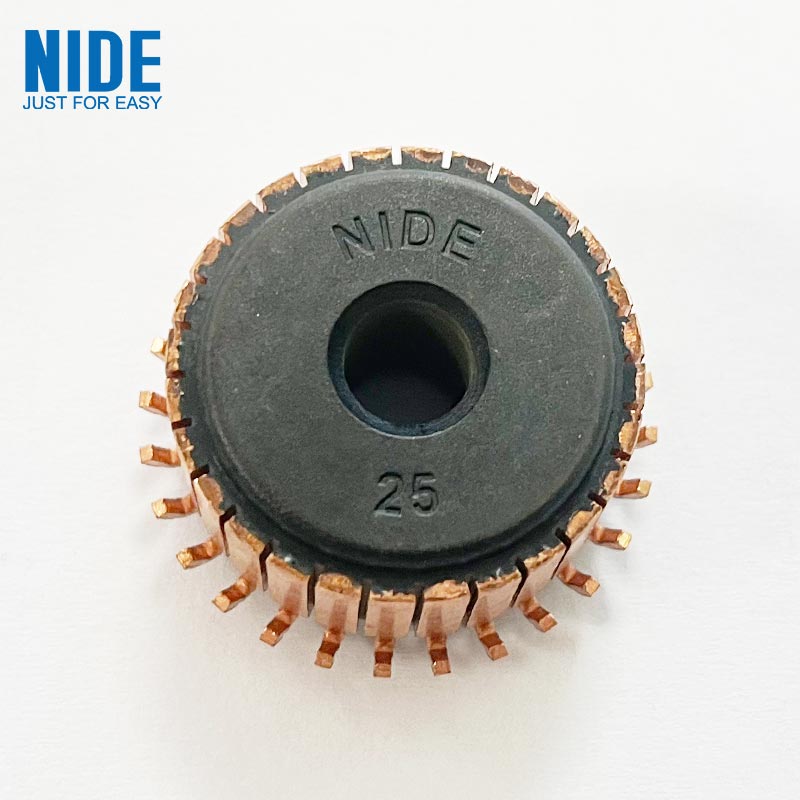

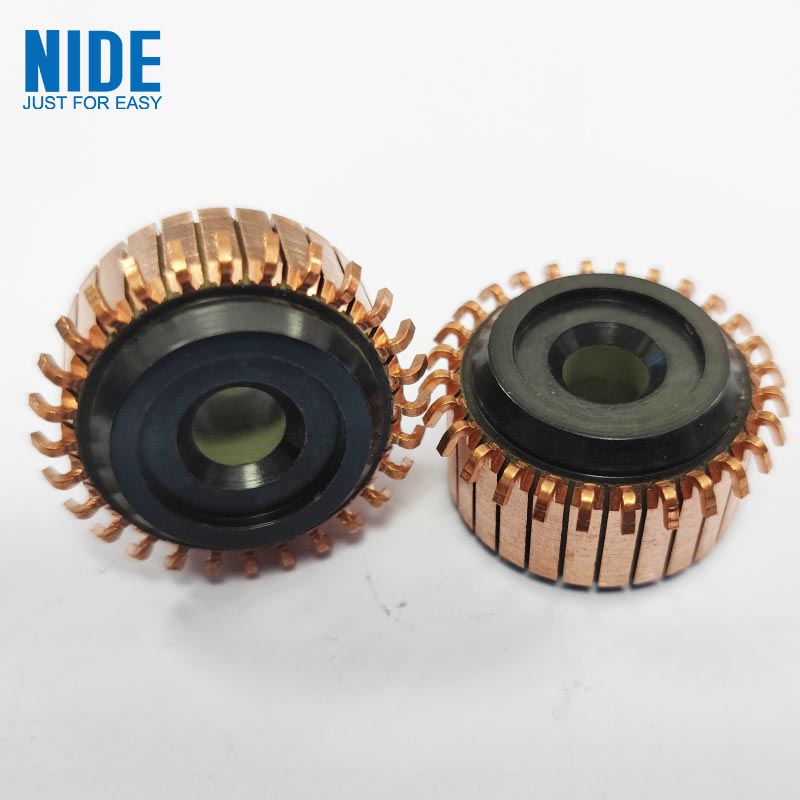

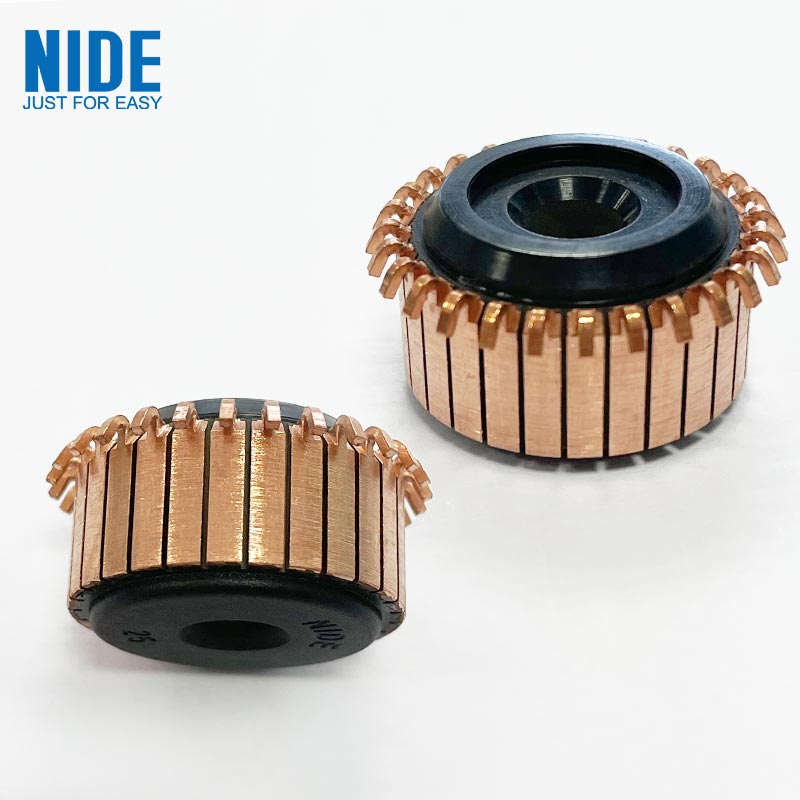

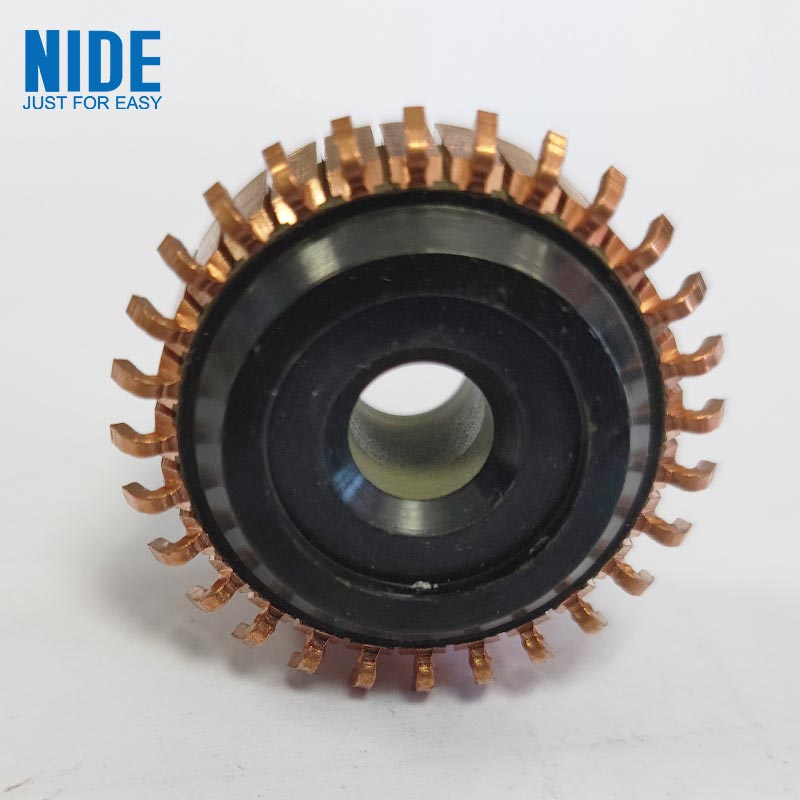

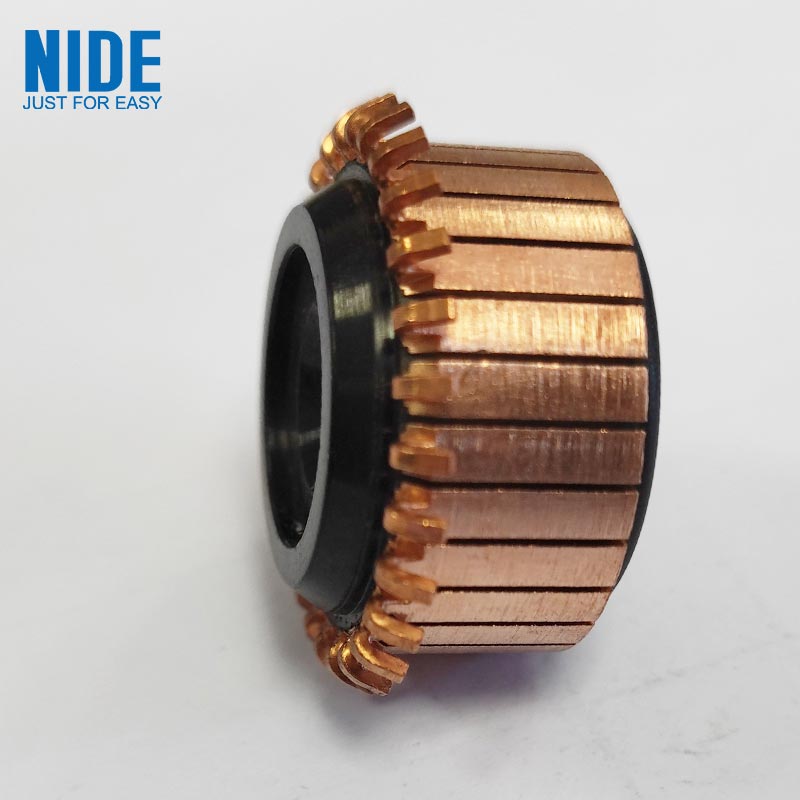

Commutator Picture
