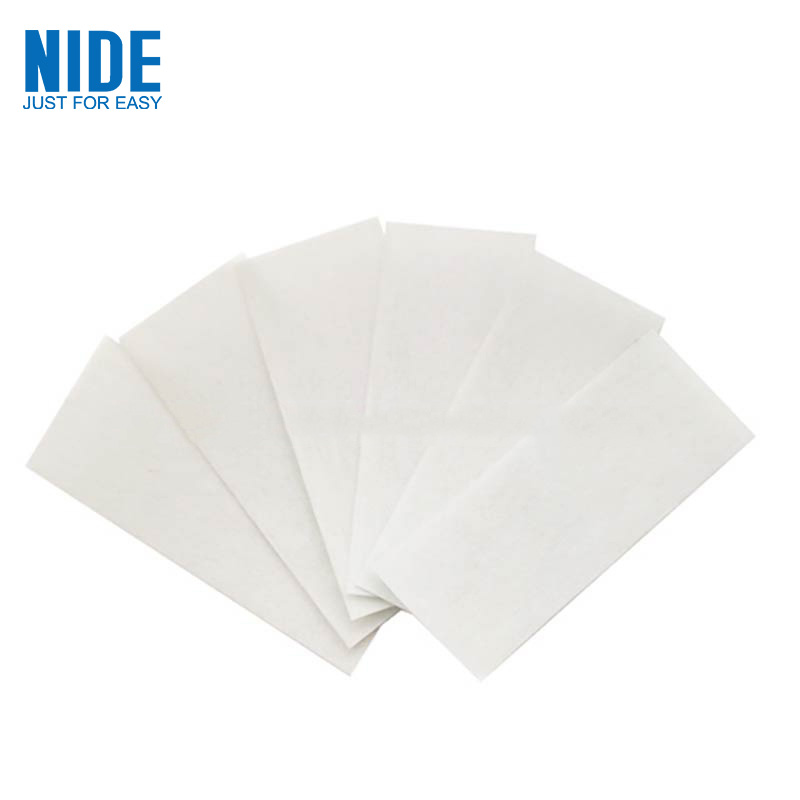

Mylar Class E Polyethylene Terephthalate Film
Mylar Class E Polyethylene Terephthalate Film
NIDE supplies different insulation material, Mylar Class E Polyethylene terephthalate Film, DMD B/F class, Red Polyester film, Class E, Red Vulcanized Fiber, Class A. We can produce different dimensions of insulation material as per customer's requirement.
Send Inquiry
Product Description
Mylar Class E Polyethylene terephthalate Film
1.Product Introduction
Mylar Class E Polyethylene terephthalate Film is a high performance, longer lasting, and versatile PET (polyester) film. They are also suitable for applications in the electronics, industrial specialty, and cast & release markets as well.
2.Product Parameter (Specification)
|
PET Class E Specification |
|||||||||||||
|
Item |
Unit |
Standard |
|||||||||||
|
Thickness |
um |
100 |
125 |
175 |
188 |
200 |
250 |
||||||
|
Tolerance |
% |
±3 |
±3 |
±3 |
±4 |
±4 |
±4 |
||||||
|
Tensile strength |
vertical |
Mpa |
≥170 |
≥160 |
≥160 |
≥150 |
≥150 |
≥150 |
|||||
|
Horizontal |
Mpa |
≥170 |
≥160 |
≥160 |
≥150 |
≥150 |
≥150 |
||||||
|
Thermal shrinkage |
vertical |
% |
≤1.5 |
||||||||||
|
Horizontal |
% |
≤0.6 |
|||||||||||
|
Haze |
% |
≤2.0 |
≤2.6 |
≤3.5 |
≤4.0 |
≤4.6 |
≤6.0 |
||||||
|
Wetting tension |
≥52 Dyn/cm |
||||||||||||
|
frequency electric strength |
V/um |
≥90 |
≥80 |
≥69 |
≥66 |
≥64 |
≥60 |
||||||
|
Thermal class |
/ |
E |
|||||||||||
|
Volume resistivity |
Ωm |
≥1x1014 |
|||||||||||
|
Density |
g/cm³ |
1.4±0.010 |
|||||||||||
|
Relative dielectric constant |
2.9~3.4 |
||||||||||||
|
Dielectric loss factor |
≤3x10-3 |
||||||||||||
3.Product Feature And Application
Mylar Class E Polyethylene terephthalate Film is suitable for applications in the electronics, industrial specialty, and cast & release markets as well.
4.Product Details
Information needed for Mylar Class E Polyethylene terephthalate Film
It will be better if customer could send us detailed drawing including below information.
1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)
2. Insulation material dimension: width, thickness, tolerance.
3. Insulation material thermal class: Class F, Class E, Class B, Class H
4. Insulation material applications
5. Required quantity: normally its weight
6. Other technical requirement.
