Single Motor Commutator For AC Motor
The motor commutator is suitable Single AC motor. NIDE commutator covers a wide range, more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.You can rest assured to buy Single Motor Commutator For AC Motor from our factory and we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
Single motor commutator for AC motor
1.Product Introduction
The Single motor commutator for AC motor isFree from bubble, cracks, or burr in the surface.
Voltage test: bar to bar at 500V, 1s, bar to bore at 1500V, 1 min, without breakdown or flashing.
Spin test: do spin test for the commutator under 140 centigrade, 5000RPM, 3min. After testing, the max deviation of outer diameter is 0.015, that of bar and bar is 0.005.
Insulation resistance: 500V, more than 50MΩ
2.Product Parameter (Specification)
|
Part No. |
O.D (D) |
I.D (d) |
Total O D (D1) |
Bar No(N) |
Bar length (L1) |
Total length (L) |
|
JZQE-RS12-148 |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
|
JZQE-RS12-148B |
63 |
20 |
73 |
24 |
16 |
26.5 |
|
JZQE-RS12-148C |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
|
JZQE-RS12-149 |
40 |
15 |
43 |
43 |
10 |
18.2 |
|
JZQE-RS31-150 |
44 |
12.08 |
23 |
10 |
12.5 |
|
|
JZQE-RS31-150B |
44 |
12.35 |
23 |
10 |
12.5 |
|
|
JZQE-RS31-150C |
44 |
12.06 |
23 |
10 |
12.5 |
|
|
JZQE-RS31-150D |
44.2 |
12.08 |
23 |
10 |
12.5 |
|
|
JZQE-RS31-150E |
44 |
12 |
23 |
10 |
12.5 |
|
|
JZQE-RS12-151 |
47.6 |
13.2 |
57 |
16 |
14 |
24.5 |
|
JZQE-RS12-151B |
47.6 |
13.2 |
57 |
16 |
14 |
22 |
|
JZQE-RS12-151C |
47.6 |
13 |
57 |
16 |
14 |
24.5 |
|
JZQE-RS12-151D |
47.6 |
13 |
57 |
16 |
14 |
22 |
|
JZQE-RS12-151E |
47.6 |
13.4 |
57 |
16 |
14 |
24.5 |
|
JZQE-RS31-169 |
38 |
12.08 |
26 |
10 |
14.3 |
|
|
JZQE-RS12-193 |
74 |
33 |
85 |
81 |
12 |
12 |
|
JZQE-RS12-247 |
19.5 |
4 |
7 |
3 |
5.5 |
|
|
JZQE-RS12-326 |
49 |
13.2 |
16 |
14 |
15 |
|
|
JZQE-RS32-348 |
58 |
24.1 |
25 |
|||
|
JZQE-RS32-464 |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
|
JZQE-RS32-464B |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
|
JZQE-RS32-464C |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
|
JZQE-RS32-464D |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
|
JZQE-RS32-464E |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
|
JZQE-RS12-480 |
78 |
23 |
25 |
13 |
23 |
|
|
JZQE-RS32-508 |
20.5 |
3.175 |
25 |
8 |
4.2 |
8.5 |
|
JZQE-RS31-525 |
44.2 |
12.08 |
23 |
10 |
13 |
|
|
JZQE-RS31-525B |
44.2 |
12.35 |
23 |
10 |
13 |
|
|
JZQE-RS31-525C |
44.2 |
12 |
23 |
10 |
13 |
|
|
JZQE-RS32-555 |
20.5 |
3 |
24.7 |
8 |
5.7 |
8.6 |
|
JZQE-RS12-593 |
71.5 |
13.2 |
64 |
24 |
28 |
32.5 |
|
JZQE-RS11-608 |
52.5 |
16 |
19 |
6.5 |
16 |
|
|
JZQE-RS11-608B |
52.5 |
16 |
19 |
6.5 |
16 |
|
|
JZQE-RS32-618 |
23 |
4 |
28.5 |
10 |
6.5 |
10 |
|
JZQE-RS32-618B |
22.5 |
4 |
28 |
10 |
6.5 |
10 |
|
JZQE-RS32-651 |
47.6 |
13 |
56.5 |
16 |
12.5 |
18.5 |
|
JZQE-RS32-664 |
48 |
13.4 |
57.5 |
16 |
12.5 |
24.5 |
|
JZQE-RS12-688 |
59 |
24.1 |
58 |
25 |
34.9 |
22 |
|
JZQE-RS12-689 |
59 |
24.1 |
58 |
25 |
34.9 |
19.5 |
|
JZQE-RS32-717 |
47.6 |
13.3 |
56.5 |
16 |
12 |
24.77 |
|
JZQE-RS32-739 |
44.2 |
13.8 |
23 |
10 |
13 |
|
|
JZQA-RS12-752 |
31 |
11.5 |
40 |
21 |
25.5 |
28 |
|
JZQB-RS31-792 |
61 |
13.5 |
29 |
9 |
16 |
|
|
JZQE-RS31-796 |
44.2 |
9 |
23 |
10 |
12.5 |
|
|
JZQE-RS12-846 |
48.5 |
10.2 |
48.5 |
25 |
6 |
11 |
|
JZQE-RS32-854 |
47.6 |
13.2 |
56.6 |
16 |
7 |
22 |
|
JZQE-RS12-907 |
48.5 |
10.2 |
48.5 |
25 |
6 |
10 |
|
JZQE-RS12-926 |
64 |
20 |
60 |
31 |
5 |
17 |
3.Product Feature And Application
This commutator is used in AC motor, single phase motor, automobile motors, motorcycle starter motors, power tool motors and micro special motors.
4.Product Details

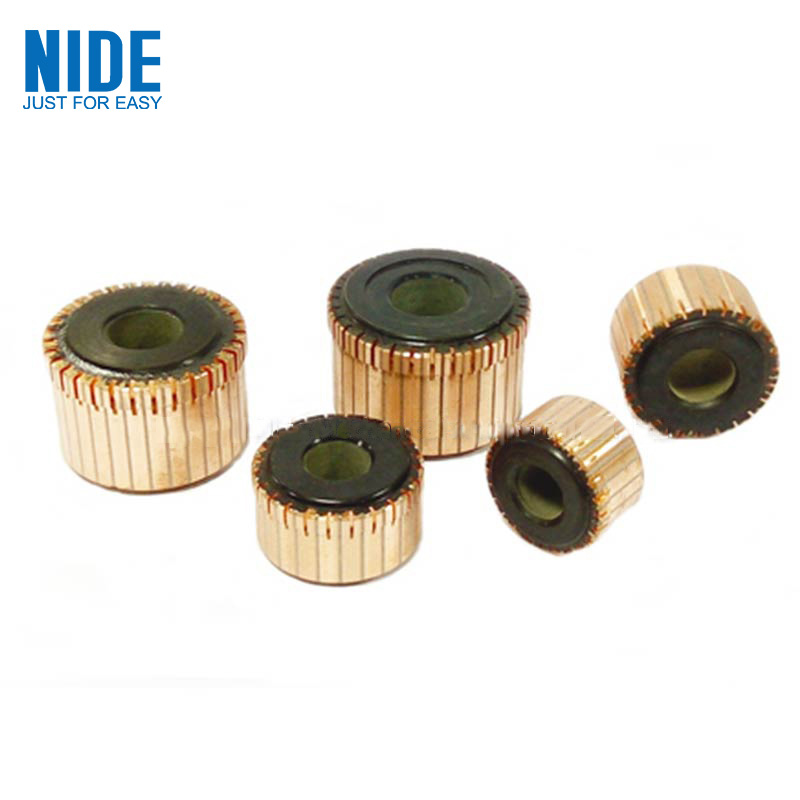

Single motor commutator for AC motor
