24 Segmented Commutator For DC Motor

This 24 Segmented Commutator is suitable for micro DC and universal motors. NIDE is engaged in the design, development, and production of slot, hook, and planar commutators (collectors) for DC motors and universal motors. And can provide various types of motor commutators according to customer needs. We have a complete quality assurance system and an advanced enterprise management system.The following is an introduction to 24 Segmented Commutator For DC Motor, I hope to help you better understand it.

Model:NDPJ-HXQ-1002

Send Inquiry

Product Description

24 Segmented Commutator For DC Motor

1.Product Introduction

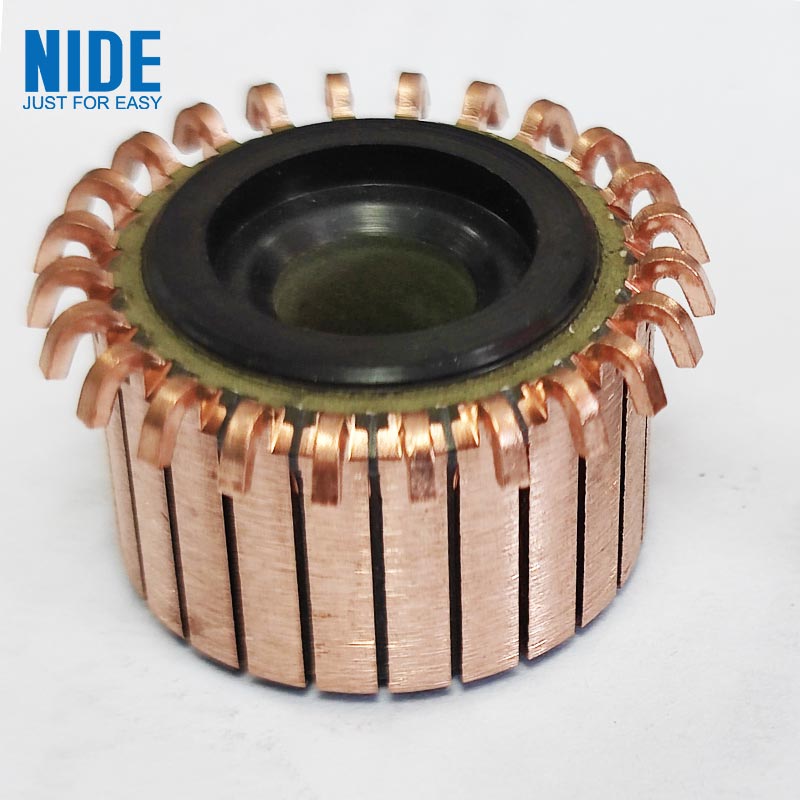

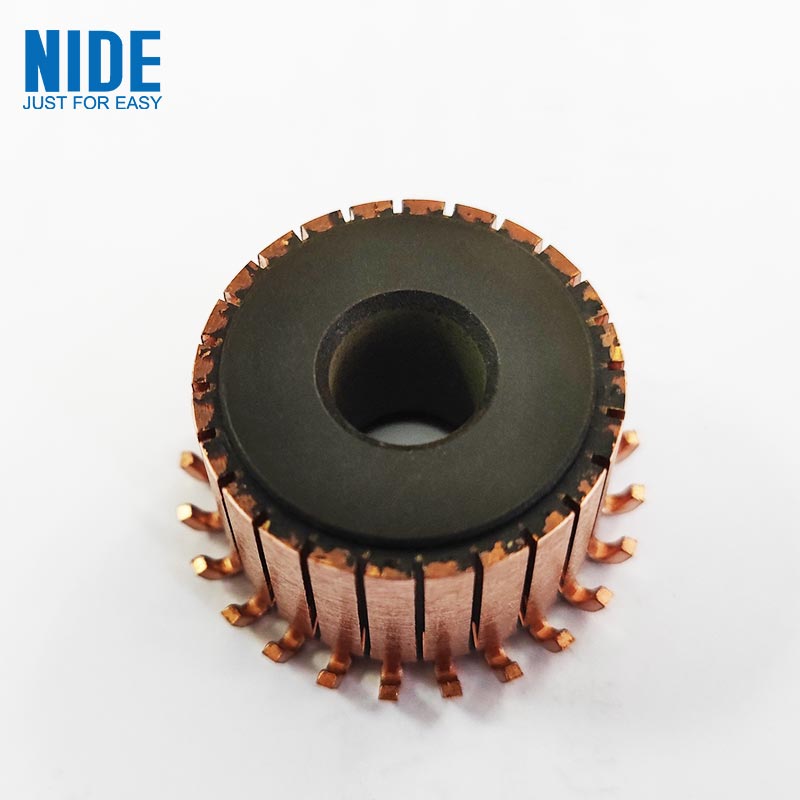

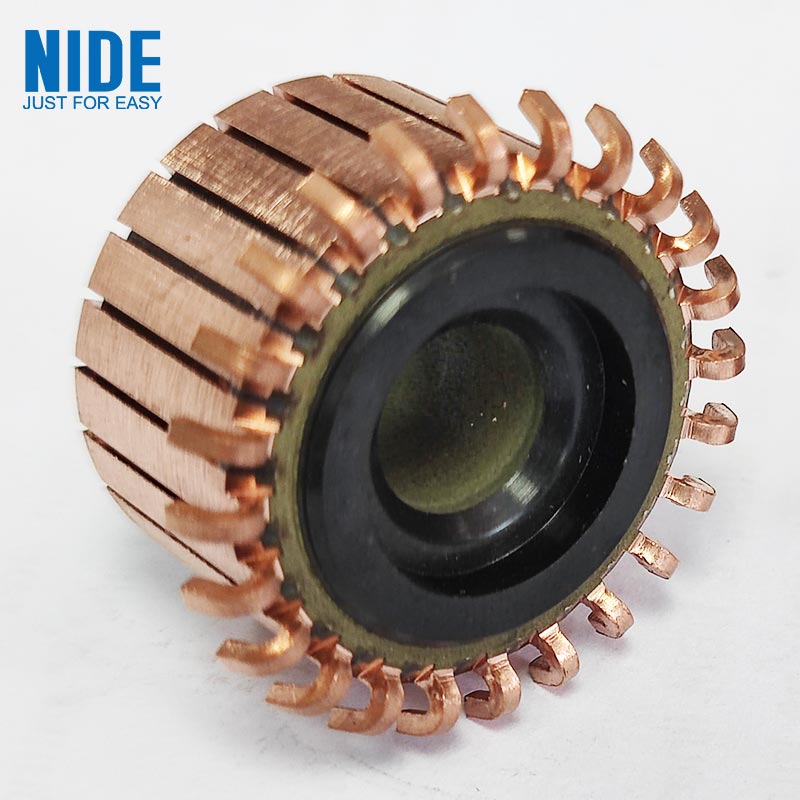

The 24 Segmented Commutator includes a reversing base made of bake lite powder material and a hook-type reversing copper sheet uniformly arranged on the circumference of the reversing base body. The characteristic is that the reinforcing ring arranged in the reinforcing ring groove is surrounded by multiple rings. The number of ceramic beads is the same as the number of hook-type commutating copper plates.The top of the hook-type reversing copper sheet is provided with a hook. Reinforced ring grooves are provided on the upper and lower end surfaces of the reversing copper sheet, and the adjacent hook-type reversing copper sheets are insulated and isolated by mica sheets.

2.Product Parameter (Specification)

Product Name :	24 segmented Commutator for DC Motor
Color :	Copper Tone
Material :	Copper, Steel; 0.03% Or 0.08% Silver Copper
Type :	Hook commutator
Tooth Quantity :	24 Pcs
Usage:	DC MOTOR
