36P Motor Commutator For DC Motor
This 36P Motor Commutator For DC Motor is suitable for washing machine motors. NIDE is engaged in the design, development, and production of slot, hook, and planar commutators (collectors) for DC motors and universal motors. And can provide various types of motor commutators according to customer needs. We have a complete quality assurance system and an advanced enterprise management system.The following is an introduction to 36P Motor Commutator For DC Motor, I hope to help you better understand it.
Model:NDPJ-HXQ-1006
Send Inquiry
Product Description
36P Motor Commutator For DC Motor
1.Commutator Introduction
The 36P Motor Commutator For DC Motor is suitable for drum washing machine motor.
Each segment or bar on the commutator conveys current to a particular coil. To enhance efficiency, the contact surfaces are made from a conductive material, usually copper. The bars are also separated from each other using a non-conductive material such as mica. This helps prevent shorting.
2. Commutator Parameter (Specification)
| Product Name : | 36 segment Commutator for washing machine DC Motor |
| Color : | Copper Tone |
| Material : | Copper, Steel; 0.03% Or 0.08% Silver Copper |
| Type : | Hook commutator |
| Tooth Quantity : | 36 Pcs |
| Usage: | DC MOTOR |
| Size: | Customized |
3. Commutator Application
The 36P Motor Commutator For DC Motor is widely applied to automotive industry, power tools, automobile motor, household appliances, and other motors.
4. Commutator Picture
High dielectric strength between chips,
no breakdown or flicker occurs;
insulation resistance ≥ 100MΩ,
AC frequency at 50HZ / 60HZ,
excellent electrical and mechanical properties,
stable structure,
high dimensional accuracy,
small uniform angular error of commutator,
high product hardness ,
Good abrasion resistance,
high tensile strength,
stable thermal performance and long service life.

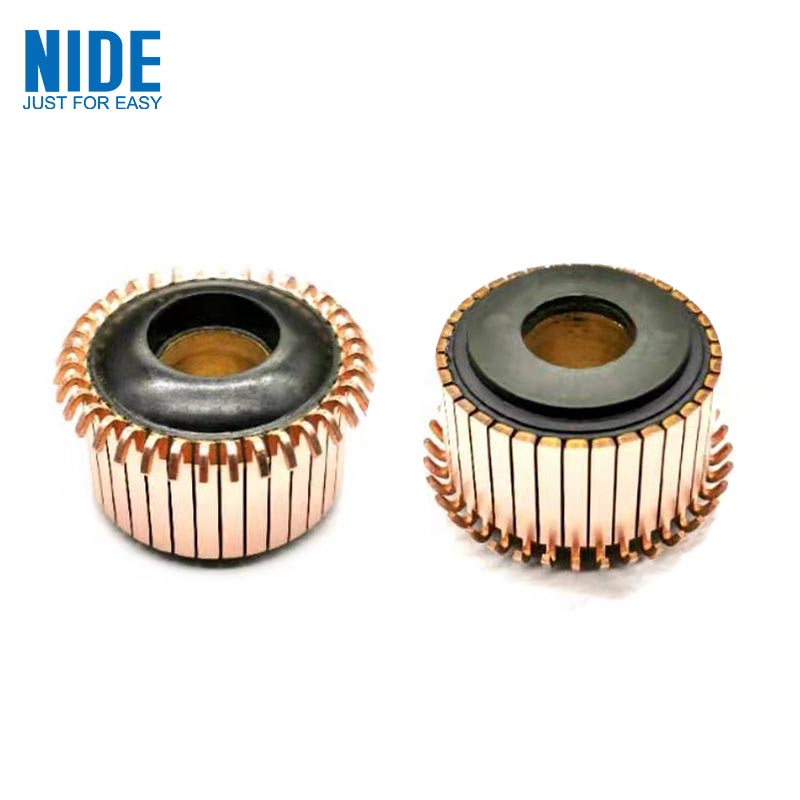

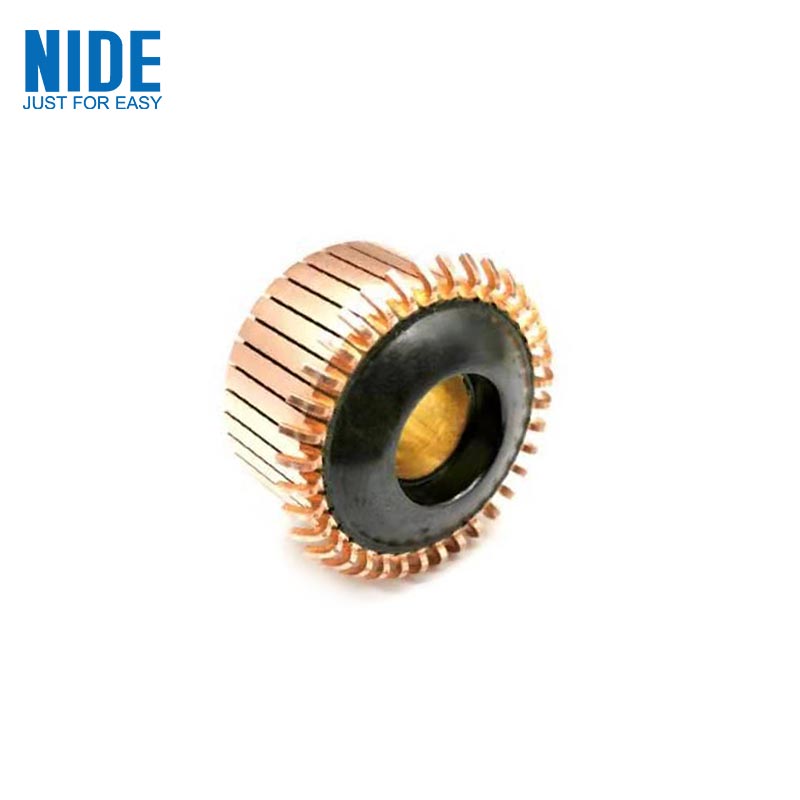

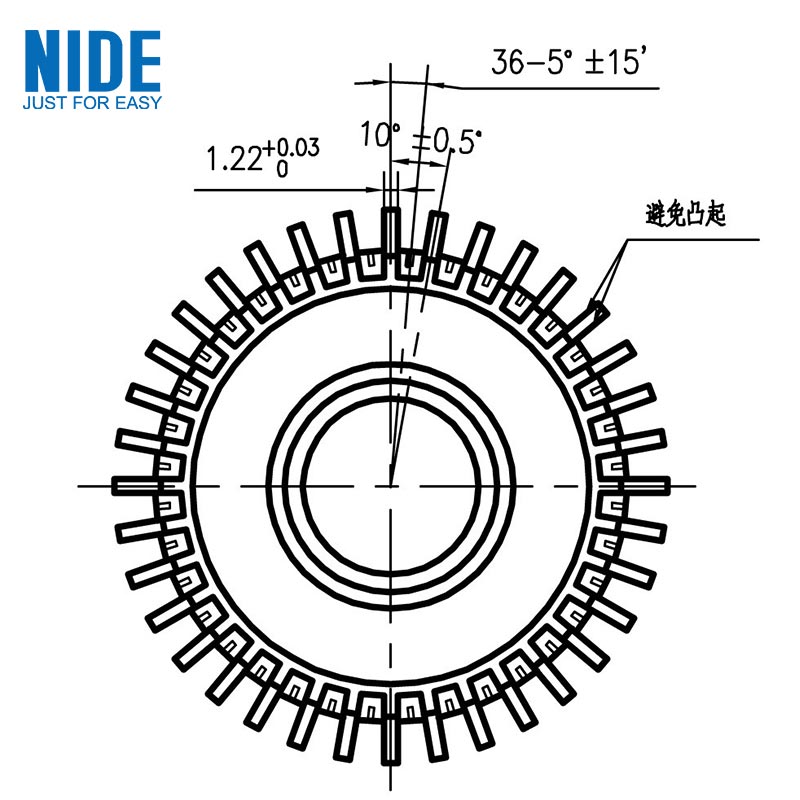

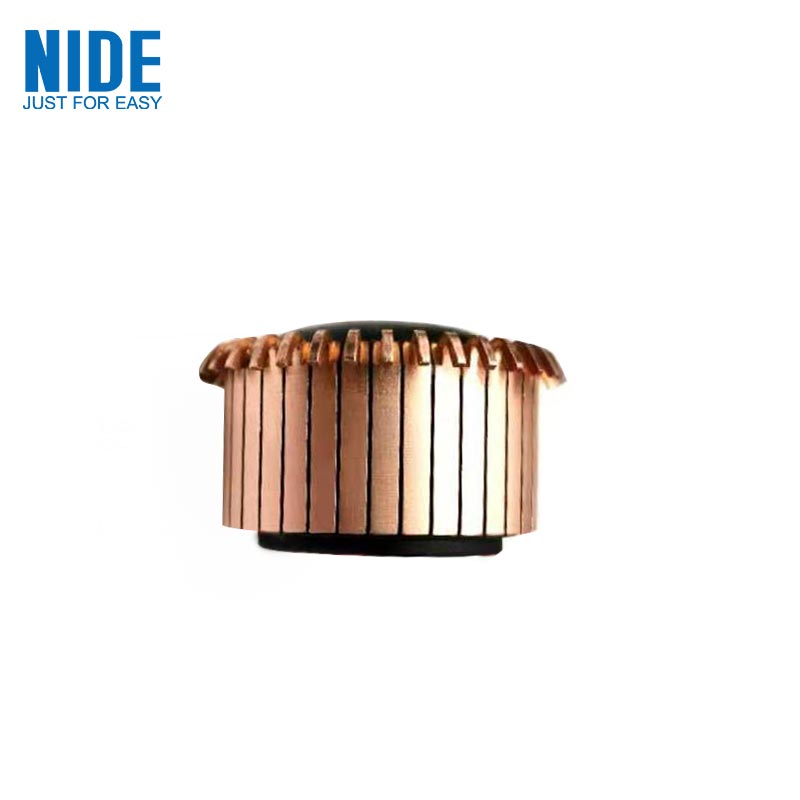

Picture show:
