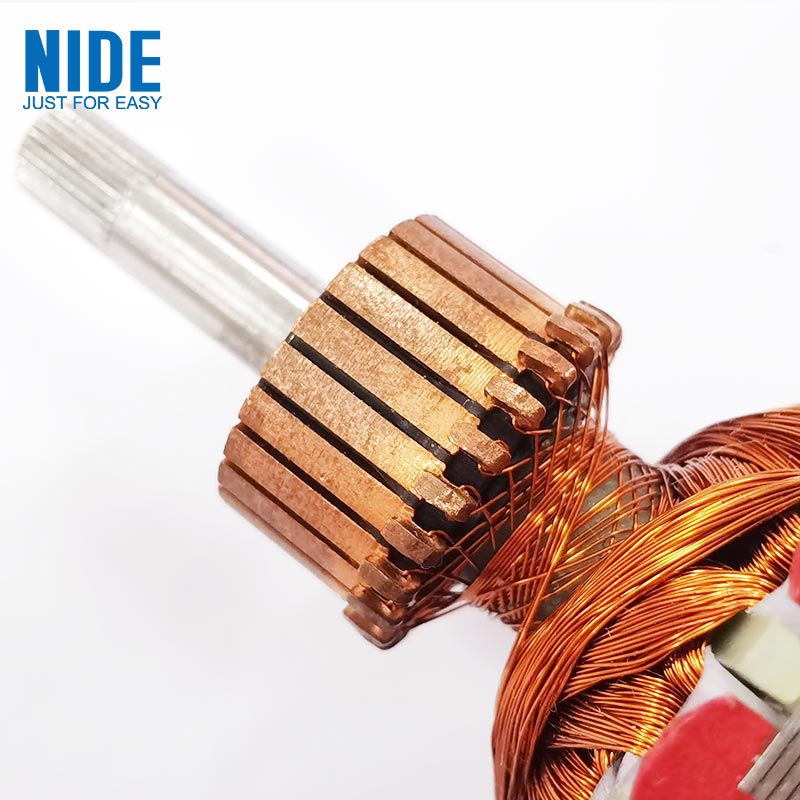

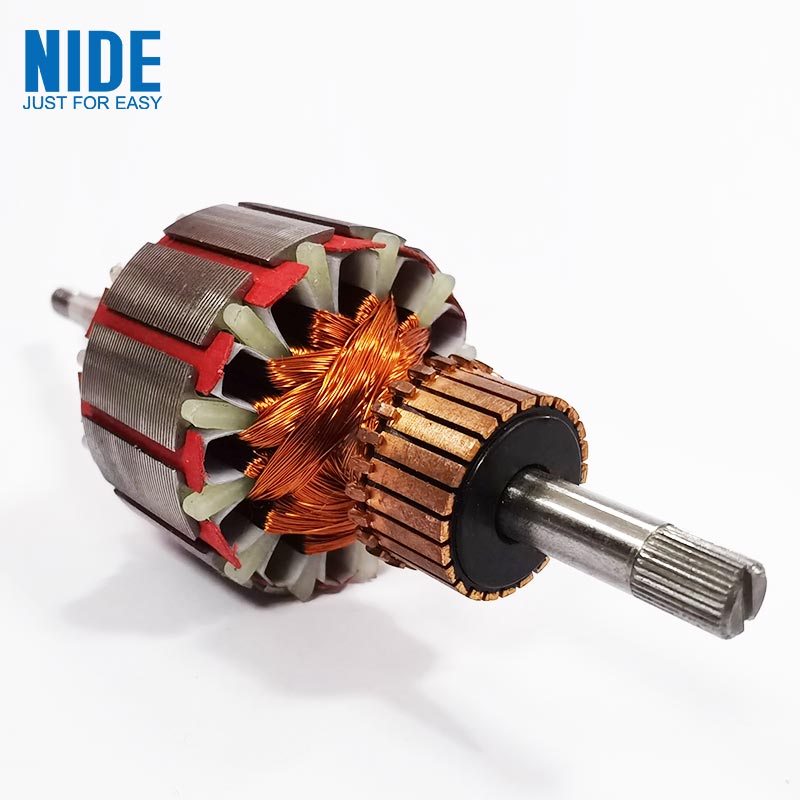

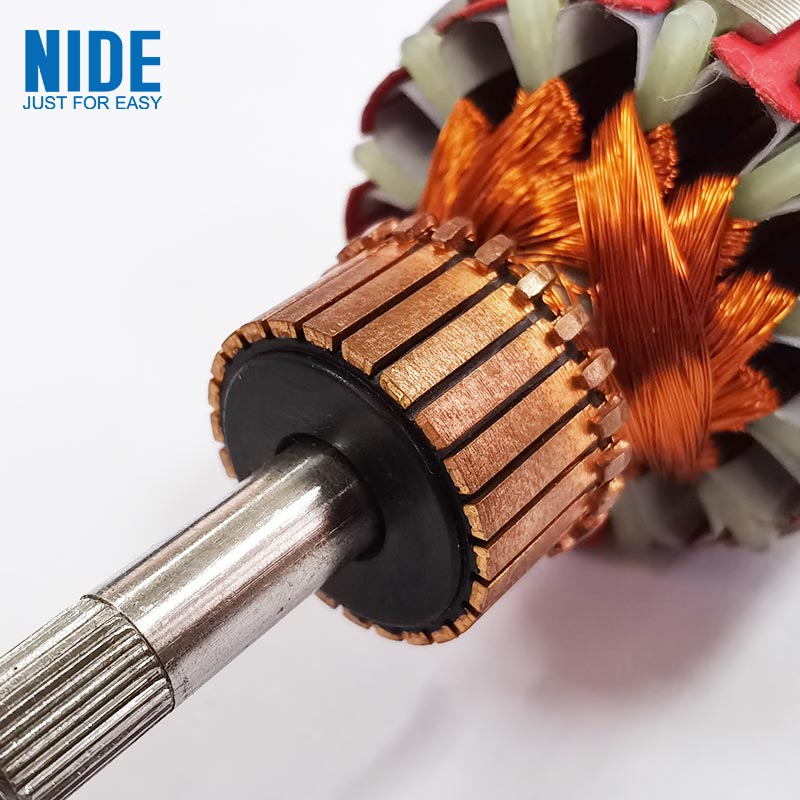

Copper Shell Motor Commutator For DC Motor
This Copper Shell Motor Commutator For DC Motor is suitable for electric tools, household appliances, automobiles, motorcycles and other fields.. NIDE is engaged in the design, development, and production of slot, hook, and planar commutators (collectors) for DC motors and universal motors. And can provide various types of motor commutators according to customer needs. We have a complete quality assurance system and an advanced enterprise management system.The following is an introduction to 8x26x16mm Copper Shell Motor Commutator For DC Motor, I hope to help you better understand it.
Model:NDPJ-HXQ-1015
Send Inquiry
Product Description
Copper Shell Motor Commutator For DC Motor
We produce more than 1200 different type of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm, which widely apply to automotive industry, power tools, household appliances, and other motors. Such as household sewing machines and industrial sewing machines, vacuum cleaner, washing machine, hair dryer, mixer, source juice machine, whisk, juicer, soymilk, and for other household appliances.
We also provide commutator customization services for customers, and customize commutators of different shapes and materials according to customer needs. If you need it, please feel free to contact us.
Hook Motor Commutator Details
| Product Name: | 24-tooth DC motor hook commutator |
| Size: | 8x26x16mm or Customized |
| Material: | Silver /copper /mica/ plastic |
| Bar: | 24 |
| Color: | Standed color |
| Type: | Hook Commutator, Segmented Commutator, Plane Commutator |
| MOQ: | 10000 Piece |
| Delivery time: | According to the order quantity |
Hook Commutator Features
1. Resin surface no crack, bubble, etc.
2. Dielectric strength: bar-bar 500VAC, 1s, bar-shaft 4800VAC, 1MIN, no break down or flash
3. Spin test: 180°, 33000rpm, 3min, OD deviation 0.01max, bar-shaft deviation 0.005max
4. Insulation resistance: room temperature, 500VDC mega meter, insulation resistance >100MΩ
5. Unmarked tolerance accord with GB/T1804-m
Copper Shell Motor Commutator For DC Motor
