Electric Motor Collector Commutator For DC Motor
Electric Motor Collector Commutator For DC Motor
This Electric Motor Collector Commutator For DC Motor is suitable for electric tools, household appliances, automobiles, motorcycles and other fields.. NIDE is engaged in the design, development, and production of slot, hook, and planar commutators (collectors) for DC motors and universal motors. And can provide various types of motor commutators according to customer needs. We have a complete quality assurance system and an advanced enterprise management system.The following is an introduction toElectric Motor Collector Commutator For DC Motor, I hope to help you better understand it.
Model:NDPJ-HXQ-1019
Send Inquiry
Product Description
Electric Motor Collector Commutator For DC Motor
NIDE International is specialized in researching, developing and manufacturing hook commutator , slot commutator, segmented commutator and flat commutator for DC motors and universal motors.
Our commutator is widely apply to automotive industry, , household appliances, wind power generation,power tools new energy industry and other motors. We can customize commutator as per customer’s requirement, provide customers with advanced commutator manufacturing technology, first class quality and best service.
Electric Motor Collector Commutator Details
| Product Name: | 24P Electric Motor Collector Commutator For DC Motor |
| Size: | 8x26x16mm or Customized |
| Material: | Silver /copper /mica/ plastic |
| Bar: | 24 |
| Color: | Standed color |
| Type: | Hook Commutator, Segmented Commutator, Plane / Flat Commutator |
| MOQ: | 10000 Piece |
| Delivery time: | According to the order quantity |
Technical specification
1. resin surface, free of bubble and crack
2. spin test: 200℃, 3000r/min, 3min, radial deviation ＜0.015, bar to bar ＜0.006.
3. High voltage test: bar to shaft at 3500V for 1 min, bar to bar at 550V for 1 s.
4. Insulation test at 500V, ＞50MΩ
5. Copper material: sliver copper or electrolytic copper or customized
6. Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.
7. Application: apply to automotive industry, power tools, household appliances, and other motors
8. Commutator type: hook type, riser type, shell type or planar type

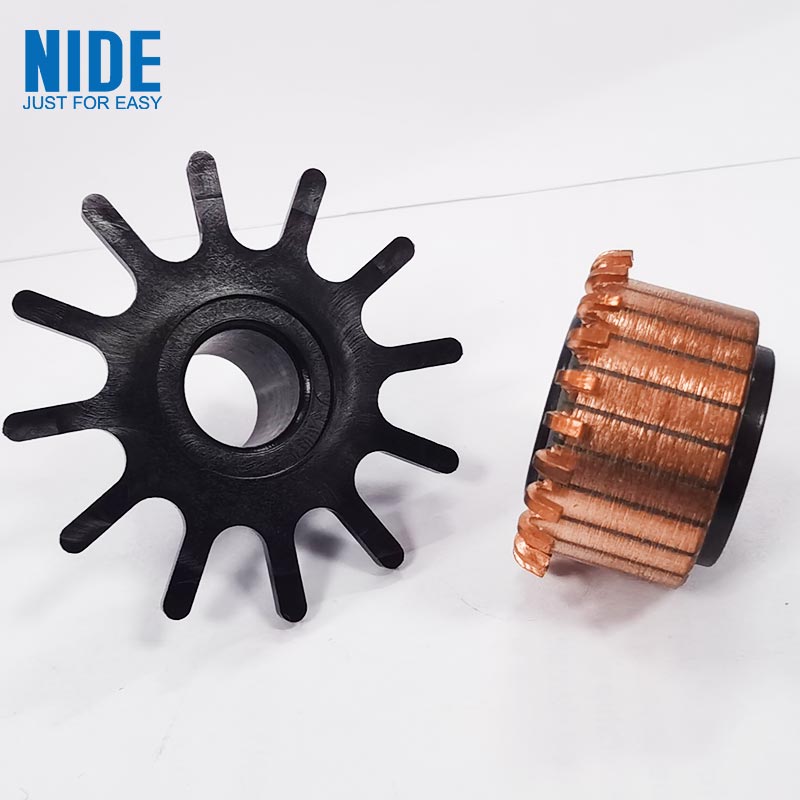

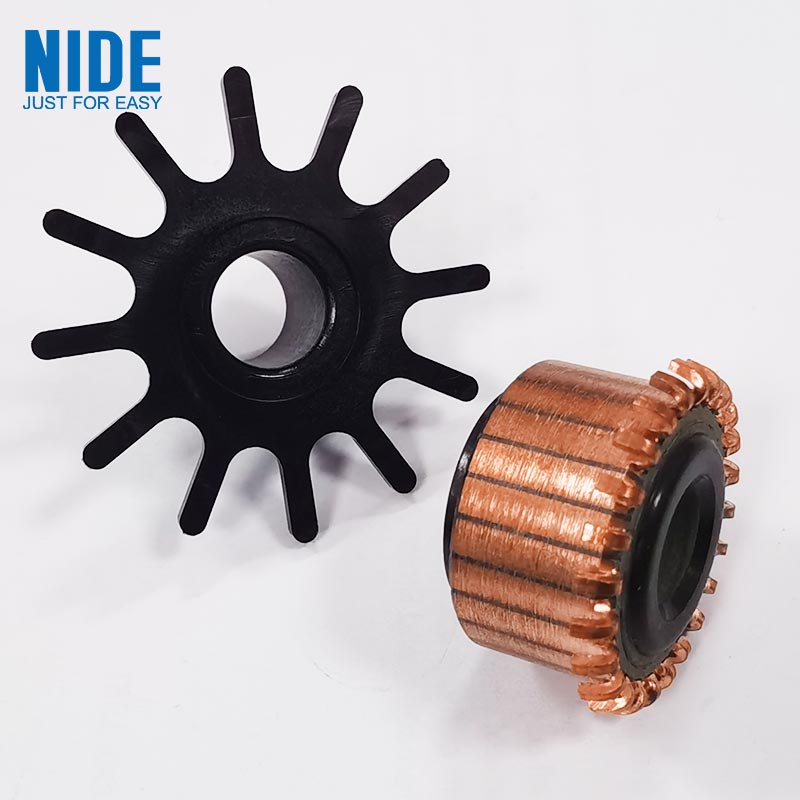

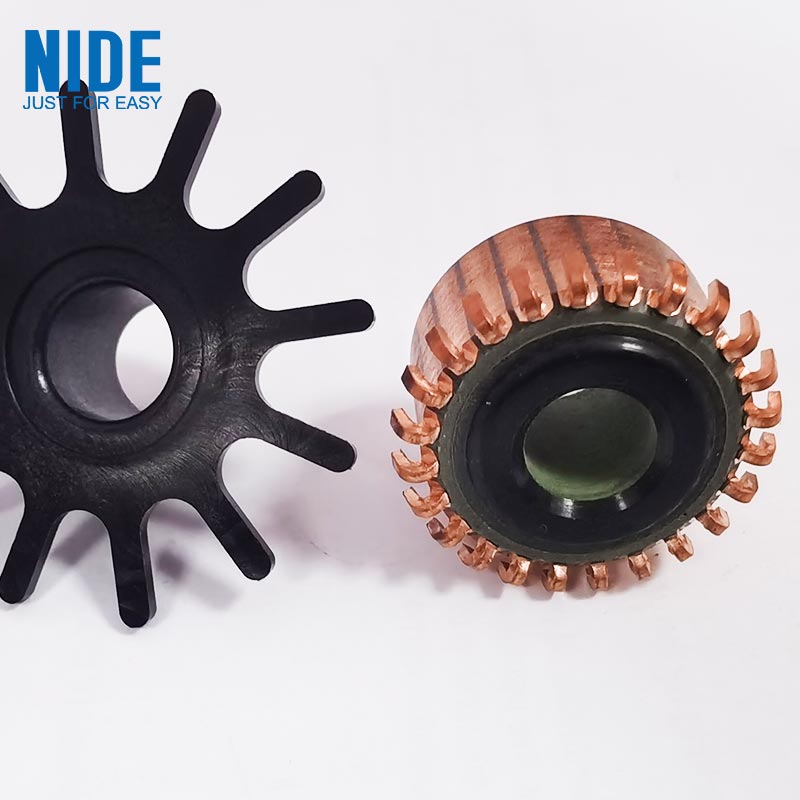

Electric Motor Collector Commutator Show
Hot Tags: Electric Motor Collector Commutator For DC Motor, Customized, China, Manufacturers, Suppliers, Factory, Made in China, Price, Quotation, CE
