High Quality And Cheap Commutator for Motorcycle

High Quality And Cheap Commutator for Motorcycle We can make any kind of commutators according to your drawing or samples. 1.Commutators for household machines 2.Commutators for automotive motor industry 3.Commutators for power tools 4.Commutators for other industry

Model:NDPJ-HXQ-03010

Send Inquiry

Product Description

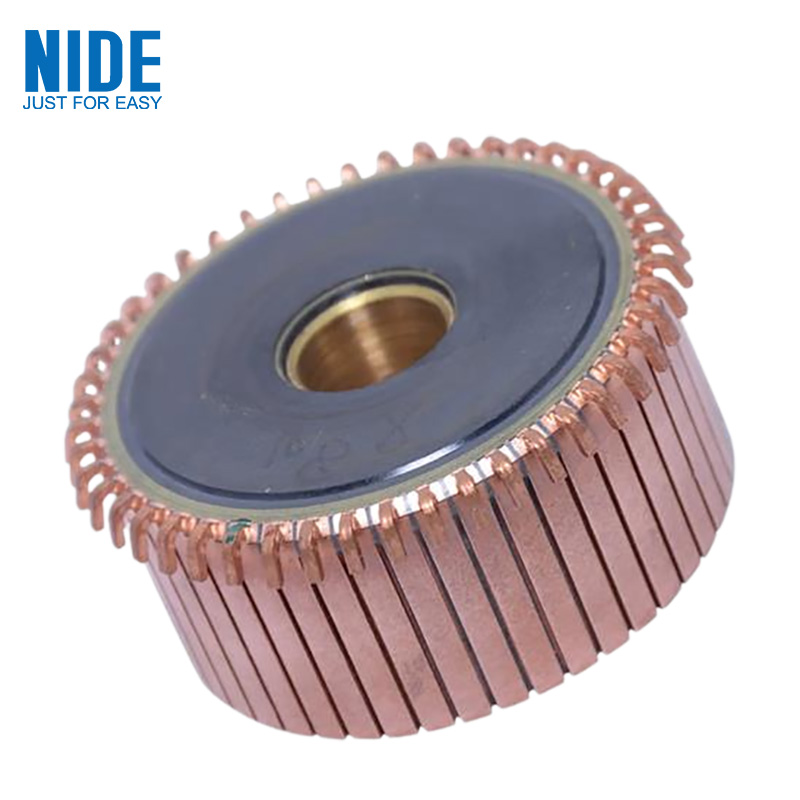

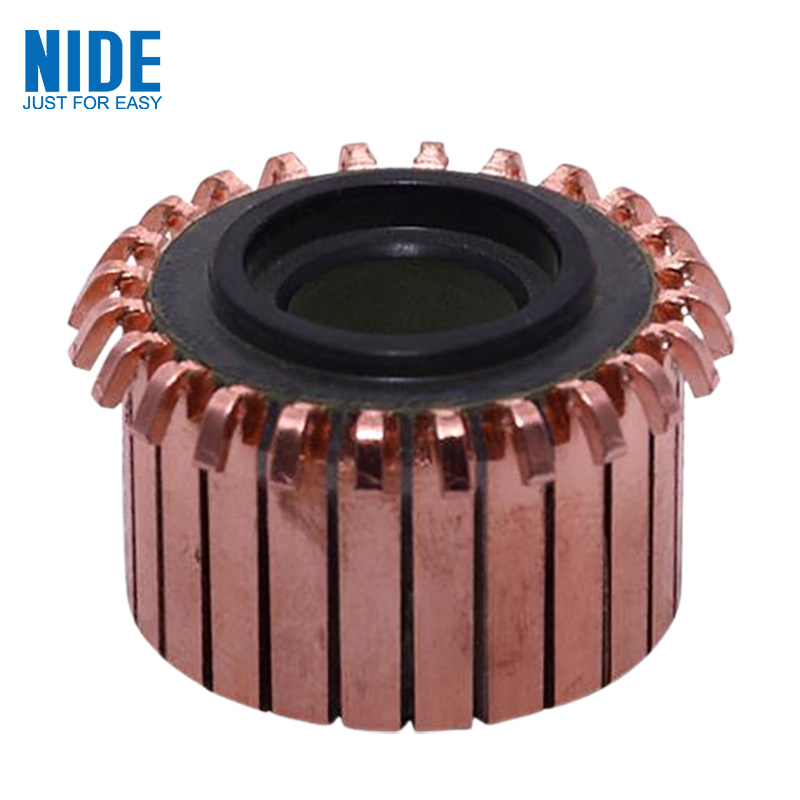

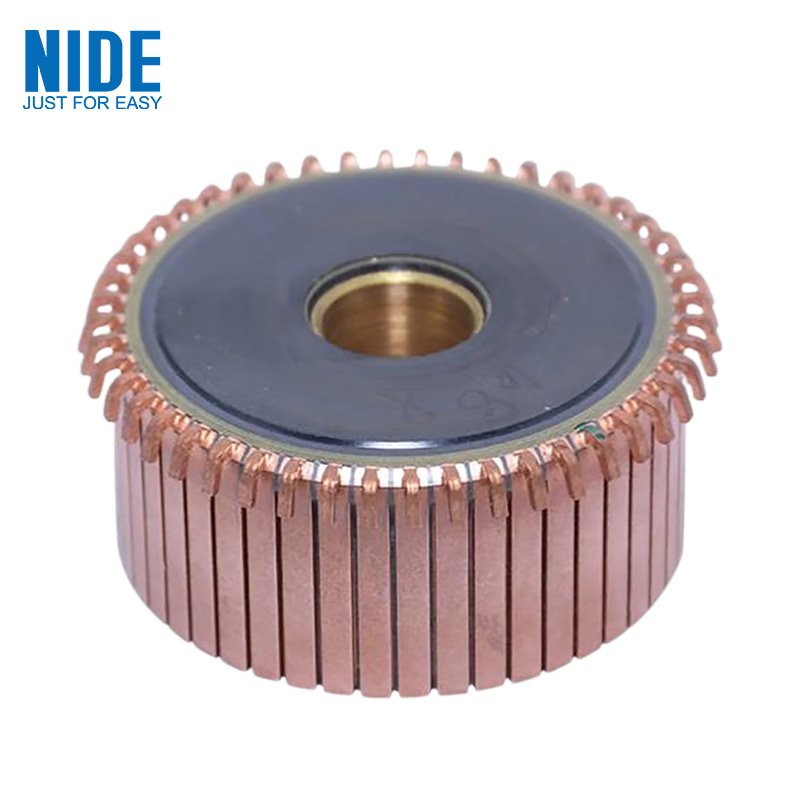

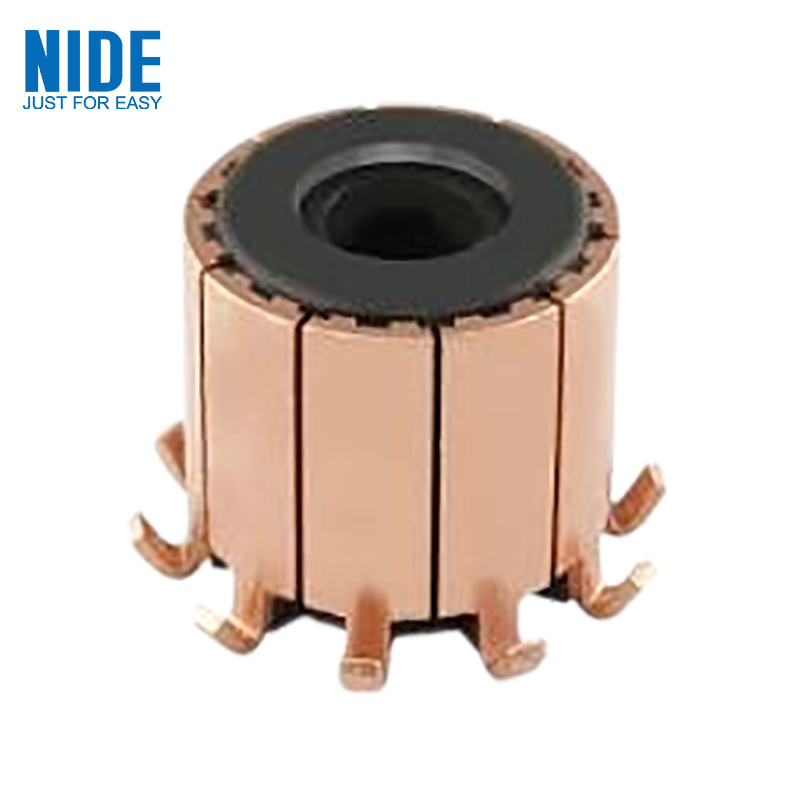

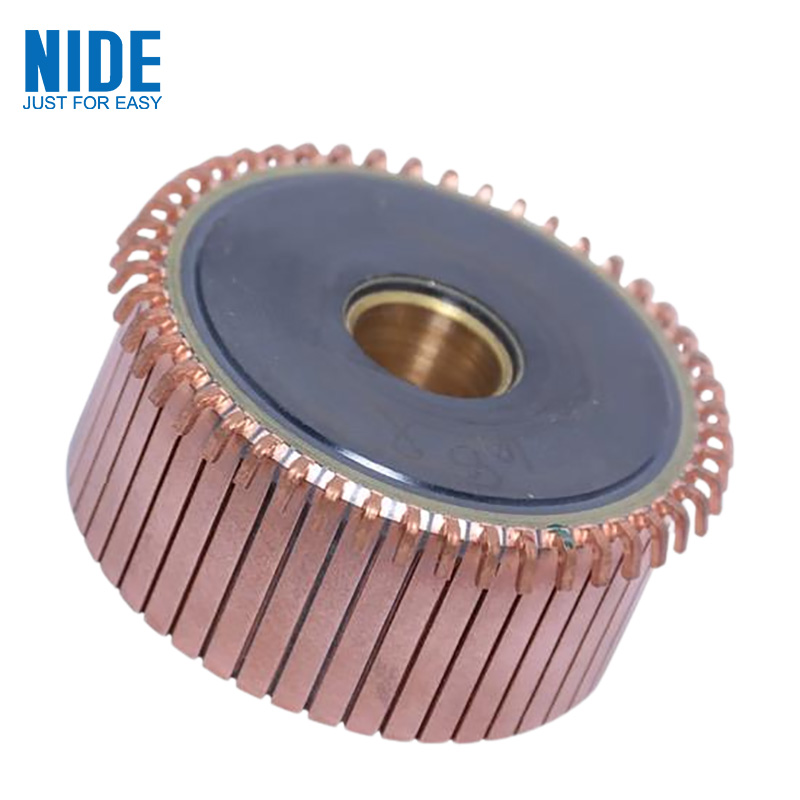

High Quality And Cheap Commutator for Motorcycle

1.Power Tool Commutator Techinical Specifications:

The end surface of the reversing seat facing the reversing panel is provided with a fixing groove, and the end surface of the reversing panel facing the reversing seat is provided with a fixing protrusion that fits with the fixing groove. A circular mounting hole is arranged in the middle, and a plurality of in-line reinforcing grooves are arranged at equal distances along the circumference between the outer circumferential surface of the circular mounting hole and the outer circumferential surface of the reversing seat, and one end of each reinforcing groove is They are all connected with the outer circumferential surface of the circular mounting hole, and the other end of each reinforcing groove is connected with the outer circumferential surface of the reversing seat. The outer circumferential surface of the fantasy panel is provided with a plurality of hooks at equal distances along the circumference.

The utility model is that: the high-precision automobile end-face commutator and the reversing panel are connected by a snap connection. If the reversing seat is damaged or the reversing panel is damaged, the replacement is relatively convenient, and the replacement is not time-consuming, and the replacement efficiency is improved. .

- Silver copper with high intension, imported molding compound ,in good quality.
- Good service for every customer.
- Perfect detecting equipment and reliable working condition tester
- Provide qualified OEM services.
- Competitive price and prompt delivery.

Product Name	Motor Commutator
Material	Metal
Color	Standed color
Payment tems	TT,Paypal etc...
Brand	Customer request
Delivery time	According to the order quantity
Sample time	7-10days, depends on product style and shipping
Features	To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole( depth: 1.4±0.1, width: 0.5±0.05) should be tolerated. Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1min, there will be no breakdown or spark. Spin Test: Under 180±2 ℃, 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003max. Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V.
Usage for area	1.Commutators for household machines: hair dryer, mixer, vacuum cleaner, washing machine, source juice machine ,whisk, juicer, soymilk, and for other household appliances 2.Commutators for automotive motor industry: Starting , generator , Wiper , Air conditioner , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering , Blower fan,heater fan , Cooling water tank radiator ,and for other auto eletronic machines . 3.Commutators for power tools: Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and for other electrical tools . 4.Commutators for other industry: Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.

2.Product Parameter (Specification)

Part No.	O.D (D)	I.D (d)	Total O D (D1)	Bar No(N)	Bar length (L1)	Total length (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B	63	20	73	24	16	26.5
JZQE-RS12-148C	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150	44	12.08		23	10	12.5
JZQE-RS31-150B	44	12.35		23	10	12.5
JZQE-RS31-150C	44	12.06		23	10	12.5
JZQE-RS31-150D	44.2	12.08		23	10	12.5
JZQE-RS31-150E	44	12		23	10	12.5
JZQE-RS12-151	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B	47.6	13.2	57	16	14	22
JZQE-RS12-151C	47.6	13	57	16	14	24.5
JZQE-RS12-151D	47.6	13	57	16	14	22
JZQE-RS12-151E	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E	20.5	5	25	8	5.7	8.5
JZQE-RS12-480	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B	44.2	12.35		23	10	13
JZQE-RS31-525C	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17

3.Product Feature And Application

This commutator is used in AC motor, single phase motor, automobile motors, motorcycle starter motors, power tool motors and micro special motors.

1.Commutators for household machines : hair dryer, mixer, vacuum cleaner, washing machine, source juice machine ,whisk, juicer, soymilk, and for other household appliances
2.Commutators for automotive motor industry:Starting , generator , Wiper , Air conditioner , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering , Blower fan,heater fan , Cooling water tank radiator ,and for other auto eletronic machines .
3. Commutators for power tools : Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and for other electrical tools .
4 Commutators for other industry : Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.
