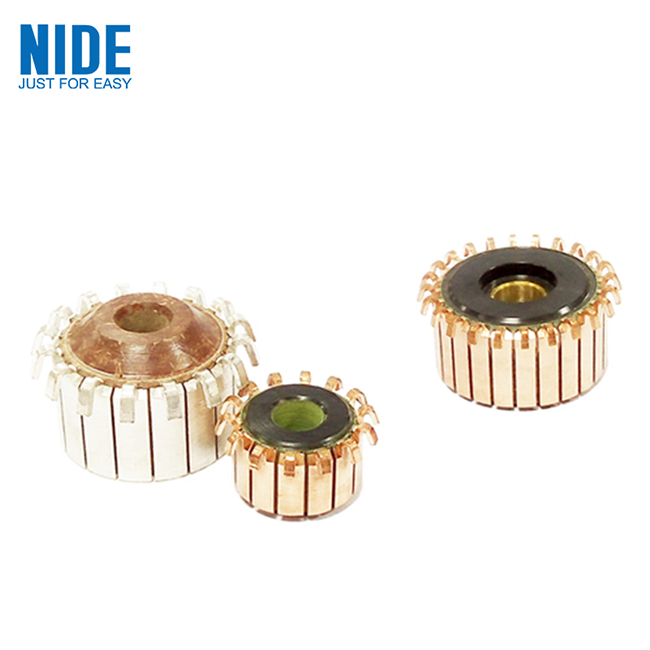

Wholesale Power Tool Commutator Armature We can make any kind of commutators according to your drawing or samples. 1.Commutators for household machines 2.Commutators for automotive motor industry 3.Commutators for power tools 4.Commutators for other industry

Model:NDPJ-HXQ-03008

Send Inquiry

Product Description

Wholesale Power Tool Commutator Armature

1.Power Tool Commutator Techinical Specifications:

To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole( depth: 1.4±0.1, width: 0.5±0.05) should be tolerated.
Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1min, there will be no breakdown or spark.
Spin Test: Under 180±2 ℃, 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003max.
Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V.
Besides the high emphasis we put on quality during the production process, we also place great importance on detection. We test commutators one by one after production with professional equipments to ensure that there is no possibility of any quality problem.
We also pay much at attention to the package. All the goods delivered from our factory are of strong packing to get rid of any hurt during the delivery to the warehouse as well as that during the shipment.
We believe that not only the quality, but also the price must be competitive. We are searching and developing new ways and advanced technology all the time to make sure that our products are always with better prices.

We can make any kind of commutators according to your drawing or samples.

- Silver copper with high intension, imported molding compound ,in good quality.
- Good service for every customer.
- Perfect detecting equipment and reliable working condition tester
- Provide qualified OEM services.
- Competitive price and prompt delivery.

Product name:	12v commutator
OD	25.5
ID	φ10
Total Height	17
Segment Length	14
Hook/Riser dia.	26.5
Bar No.	24

2.Product Parameter (Specification)

Part No.	O.D (D)	I.D (d)	Total O D (D1)	Bar No(N)	Bar length (L1)	Total length (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B	63	20	73	24	16	26.5
JZQE-RS12-148C	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150	44	12.08		23	10	12.5
JZQE-RS31-150B	44	12.35		23	10	12.5
JZQE-RS31-150C	44	12.06		23	10	12.5
JZQE-RS31-150D	44.2	12.08		23	10	12.5
JZQE-RS31-150E	44	12		23	10	12.5
JZQE-RS12-151	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B	47.6	13.2	57	16	14	22
JZQE-RS12-151C	47.6	13	57	16	14	24.5
JZQE-RS12-151D	47.6	13	57	16	14	22
JZQE-RS12-151E	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E	20.5	5	25	8	5.7	8.5
JZQE-RS12-480	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B	44.2	12.35		23	10	13
JZQE-RS31-525C	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17

3.Product Feature And Application

This commutator is used in AC motor, single phase motor, automobile motors, motorcycle starter motors, power tool motors and micro special motors.

1.Commutators for household machines : hair dryer, mixer, vacuum cleaner, washing machine, source juice machine ,whisk, juicer, soymilk, and for other household appliances
2.Commutators for automotive motor industry:Starting , generator , Wiper , Air conditioner , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering , Blower fan,heater fan , Cooling water tank radiator ,and for other auto eletronic machines .
3. Commutators for power tools : Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and for other electrical tools .
4 Commutators for other industry : Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.
